Product Description

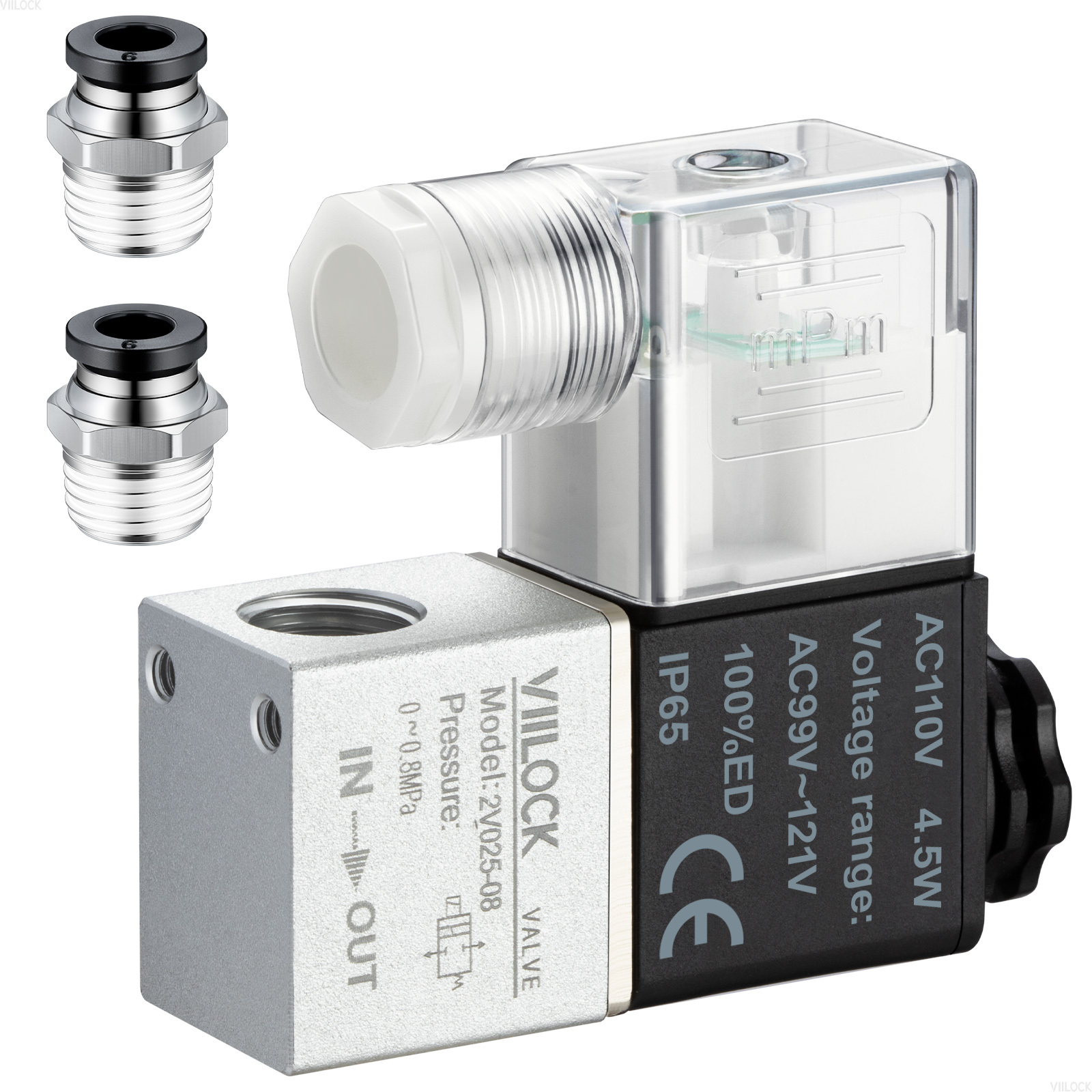

The 2V025-08 is a compact 2-way normally closed pneumatic solenoid valve engineered for reliable pneumatic circuit control. Constructed from high-strength aluminum alloy with a transparent visible coil housing and AC110V/AC220/DC12V/DC24V actuation, it delivers precise on/off switching for pneumatic systems. Featuring standard 1/4"NPT ports for air inlet and outlet, this valve ensures seamless integration with mainstream pneumatic components. With exceptional hardness, corrosion resistance, and great heat dissipation, it offers long service life in industrial environments. It is widely used in automated production lines, pneumatic fixtures, and machinery manufacturing.
Key Features

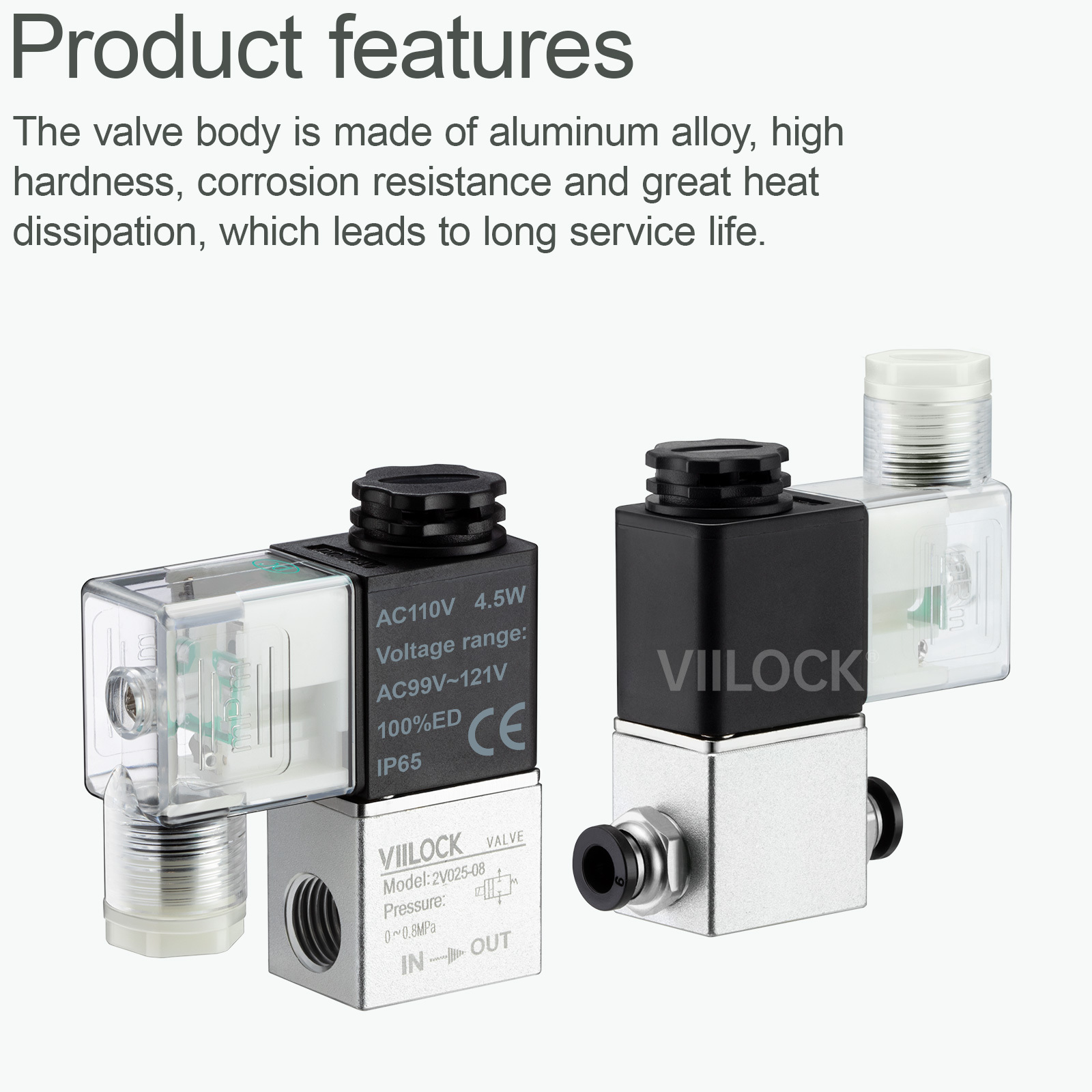

- Aluminum Alloy Valve Body: High-hardness aluminum construction delivers exceptional corrosion resistance, heat dissipation, and durability for long service life.
- 2-Way Normally Closed Design: Energized to open, de-energized to close, ensuring reliable shutoff and safety in pneumatic systems.
- Standard 1/4"NPT Ports: Universal 1/4"NPT threads for air inlet (IN) and air outlet (OUT), compatible with mainstream pneumatic tubes and push-to-connect fittings.

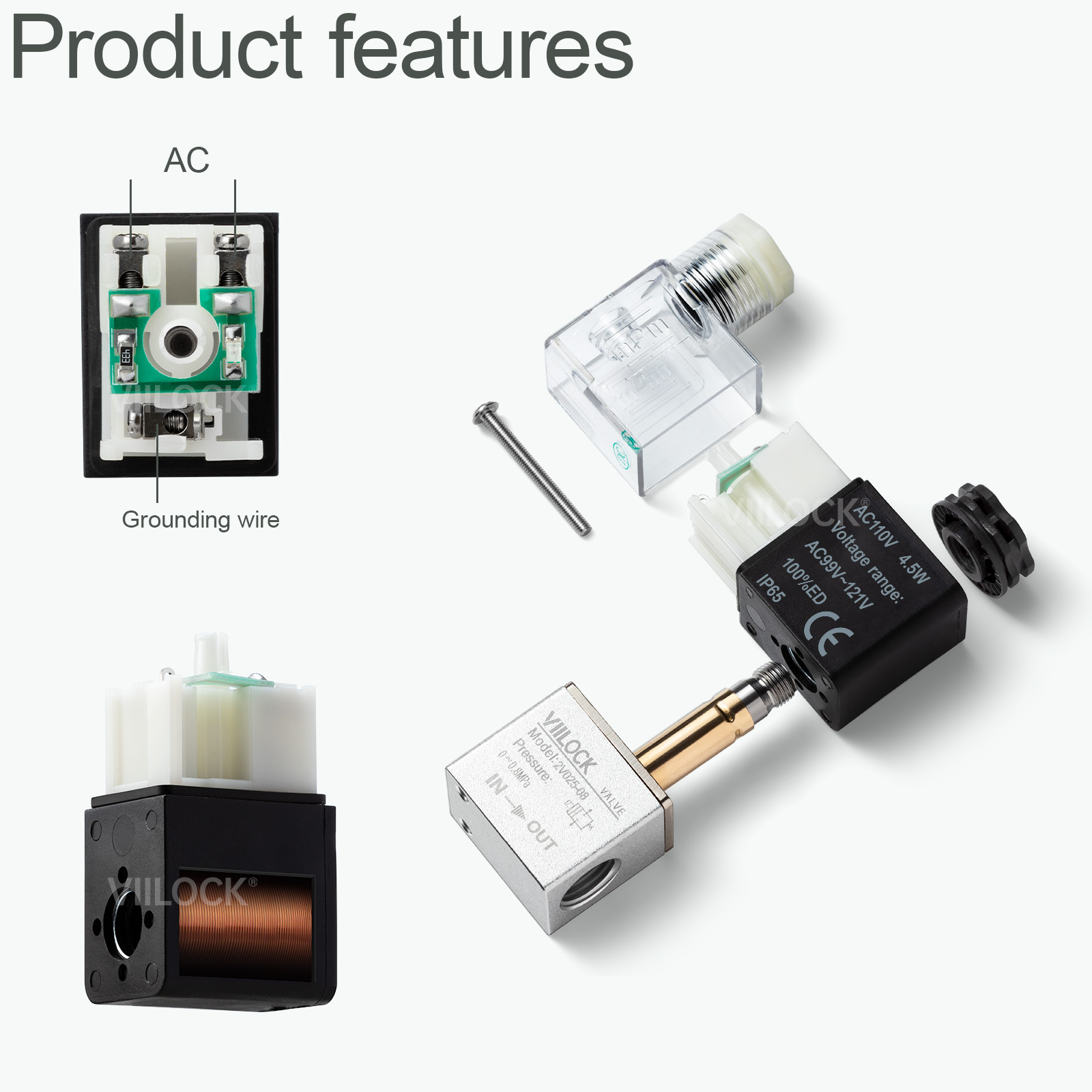

- Transparent Visible Coil: Clear coil housing allows direct visual inspection of internal components, facilitating troubleshooting and maintenance.
- IP65 Protection & 100%ED Operation: IP65 dust and water resistance for harsh industrial environments, 100% duty cycle for continuous operation without overheating.
Technical Parameters
- Model: 2V025-08
- Product Type: 2-Way Normally Closed Pneumatic Solenoid Valve
- Voltage: Available in AC110V (voltage range: AC99V~121V, power: 4.5W), AC220V (voltage range: AC198V~242V, power: 4.5W), DC12V (voltage range: DC10.8V~13.2V, power: 5W) and DC24V (voltage range: DC21.6V~26.4V, power: 5W).
- Working Pressure Range: 0~0.8MPa

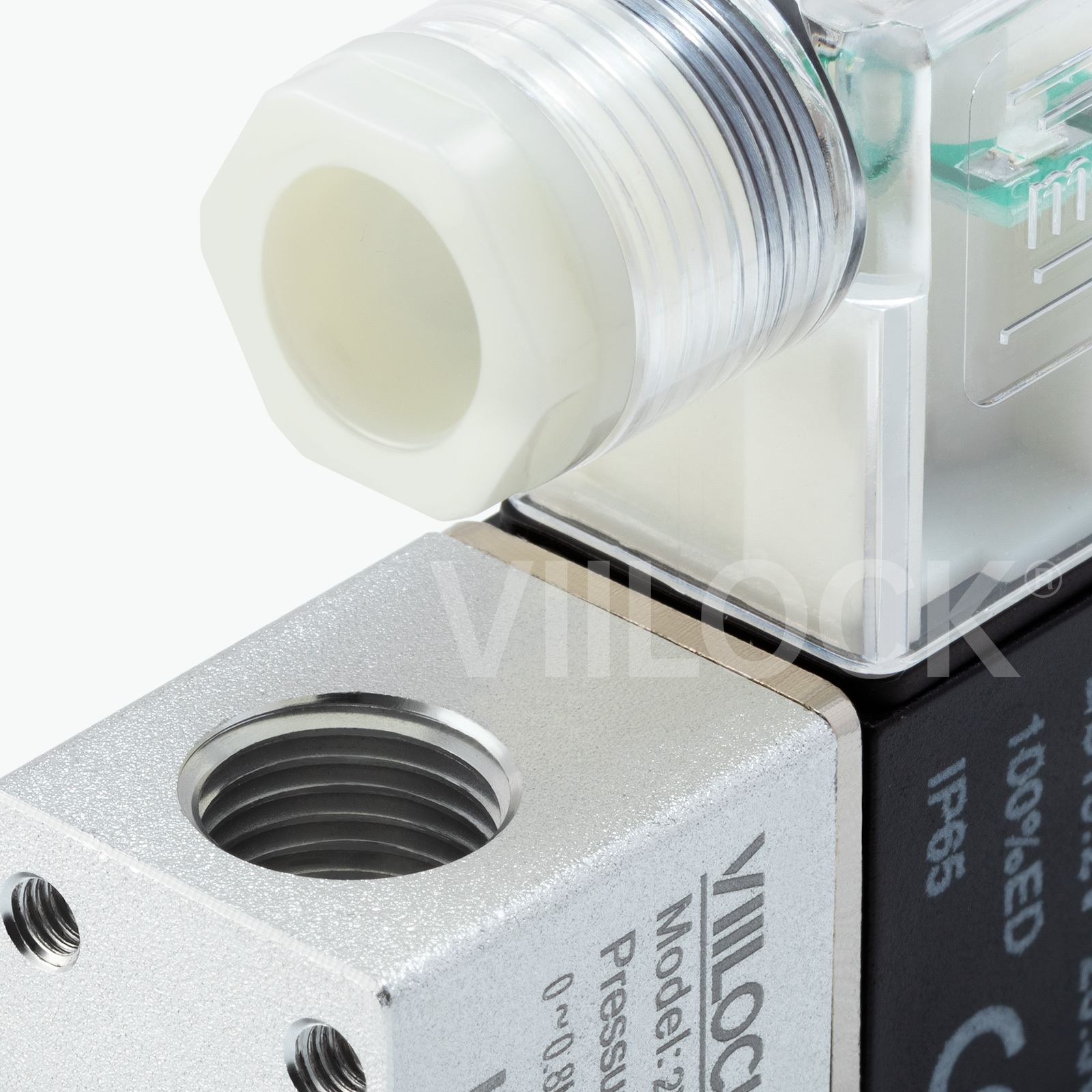

- Port Size: Air Inlet (IN)=1/4"NPT, Air Outlet (OUT)=1/4"NPT
- Material: Aluminum Alloy (High Hardness, Corrosion Resistant, Great Heat Dissipation)
- Protection Grade: IP65
- Duty Cycle: 100%ED (Continuous Operation)

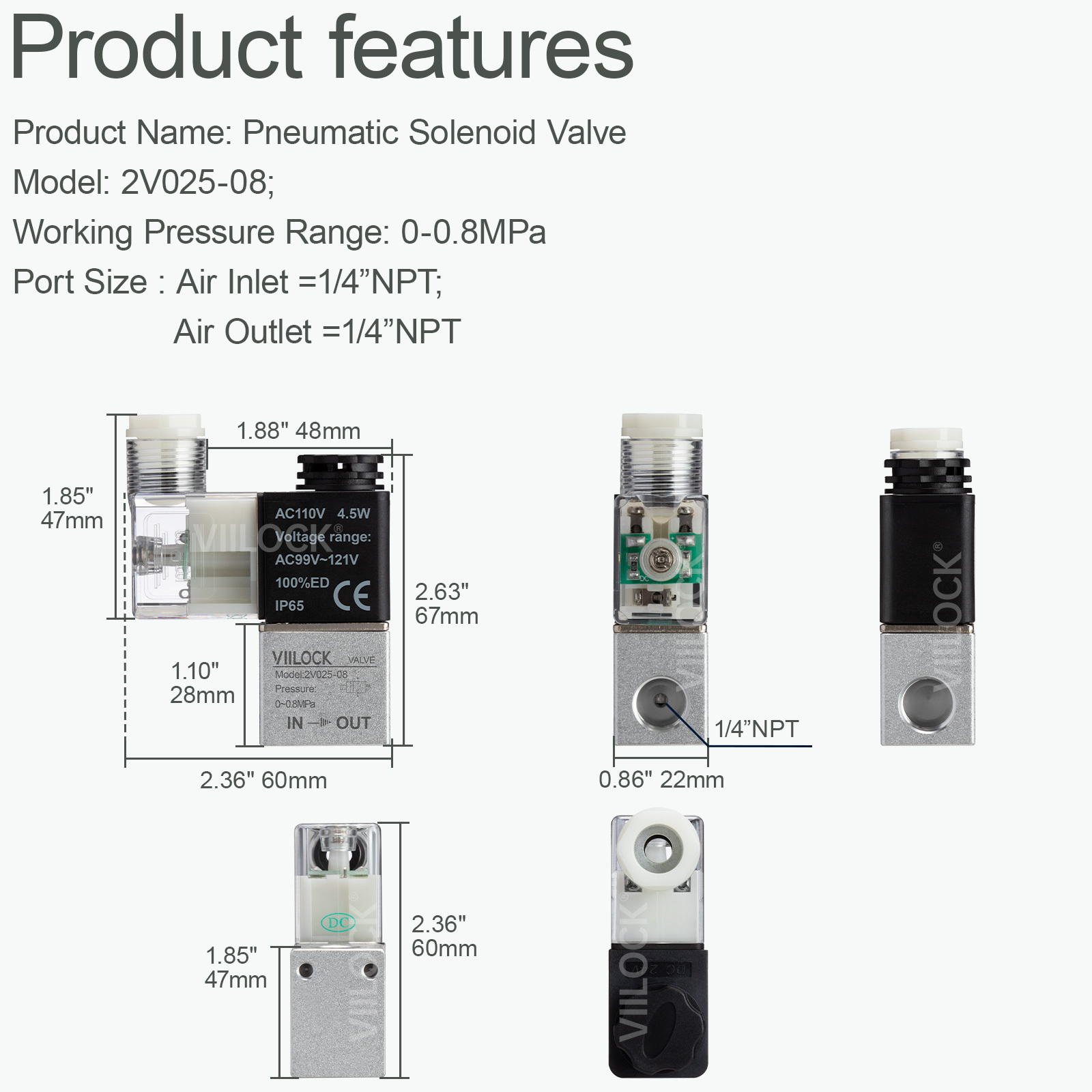

- Dimensions: Total Length 60mm (2.36"), Total Height 67mm (2.63"), Valve Body Width 28mm (1.10"), Height 47mm (1.85")

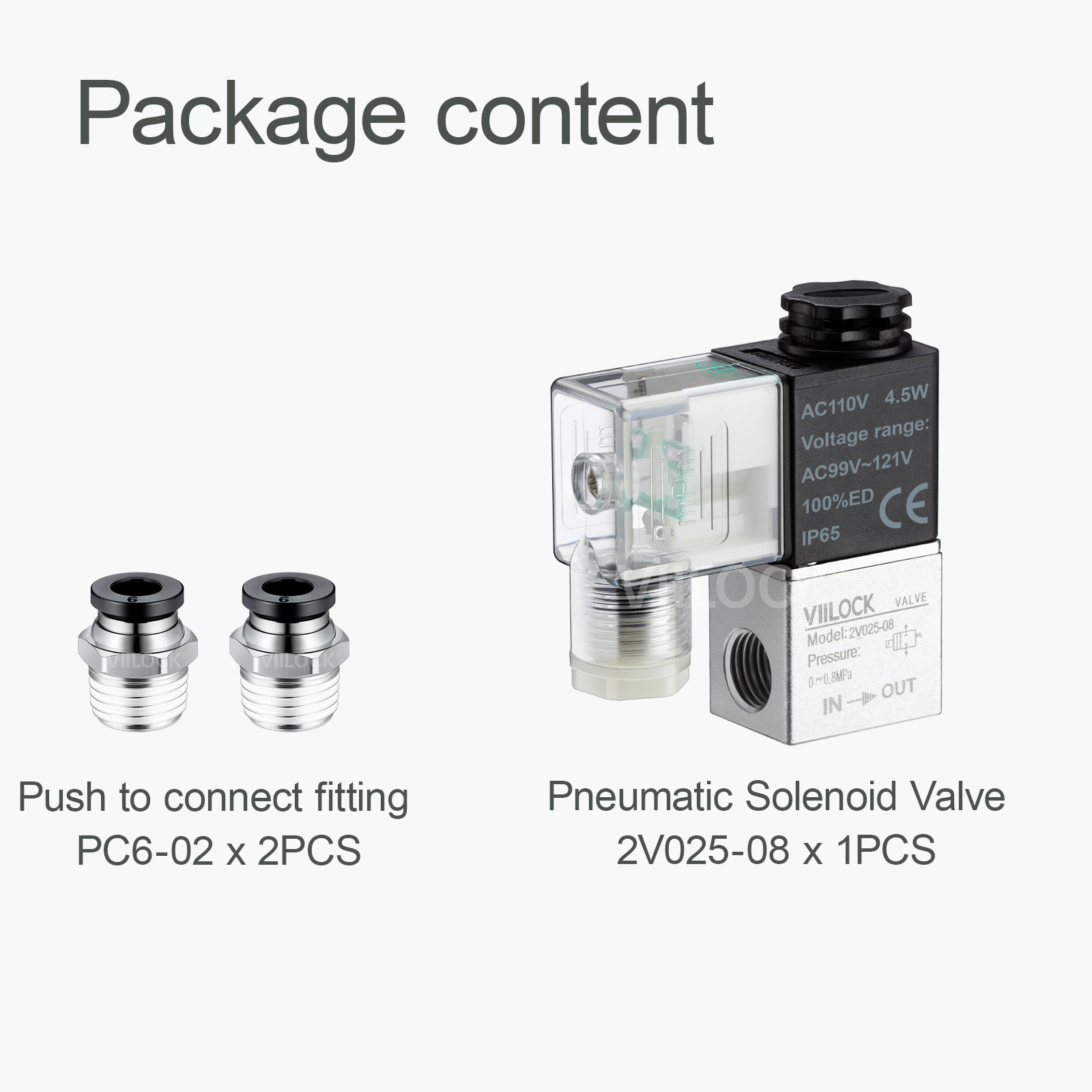

- Package Content: 1 x 2V025-08 Solenoid Valve, 2 x PC6-02 Push-to-Connect Fittings
Applications
Widely used in automated production lines, pneumatic fixtures, machinery manufacturing, pneumatic control systems, and industrial automation equipment. Ideal for pneumatic systems requiring reliable on/off control.
