Product Description
The 4V210-08 is a heavy-duty 5/2-way single solenoid pneumatic valve engineered for reliable directional control of double-acting cylinders. Constructed from high-strength aluminum alloy with a black coil housing and brown transparent viewing window and DC12V actuation, it delivers precise, fast switching for pneumatic systems. Featuring standard 1/4"NPT ports for supply/actuation and 1/8"NPT exhaust ports, this valve ensures seamless integration with mainstream pneumatic components. With exceptional hardness, corrosion resistance, and great heat dissipation, it offers long service life in industrial environments. It is widely used in woodworking machinery, automotive repair tools, electrical automation production lines, and industrial automation, ideal for low-voltage safety control applications, with a distinct black housing to differentiate from other versions.
Key Features

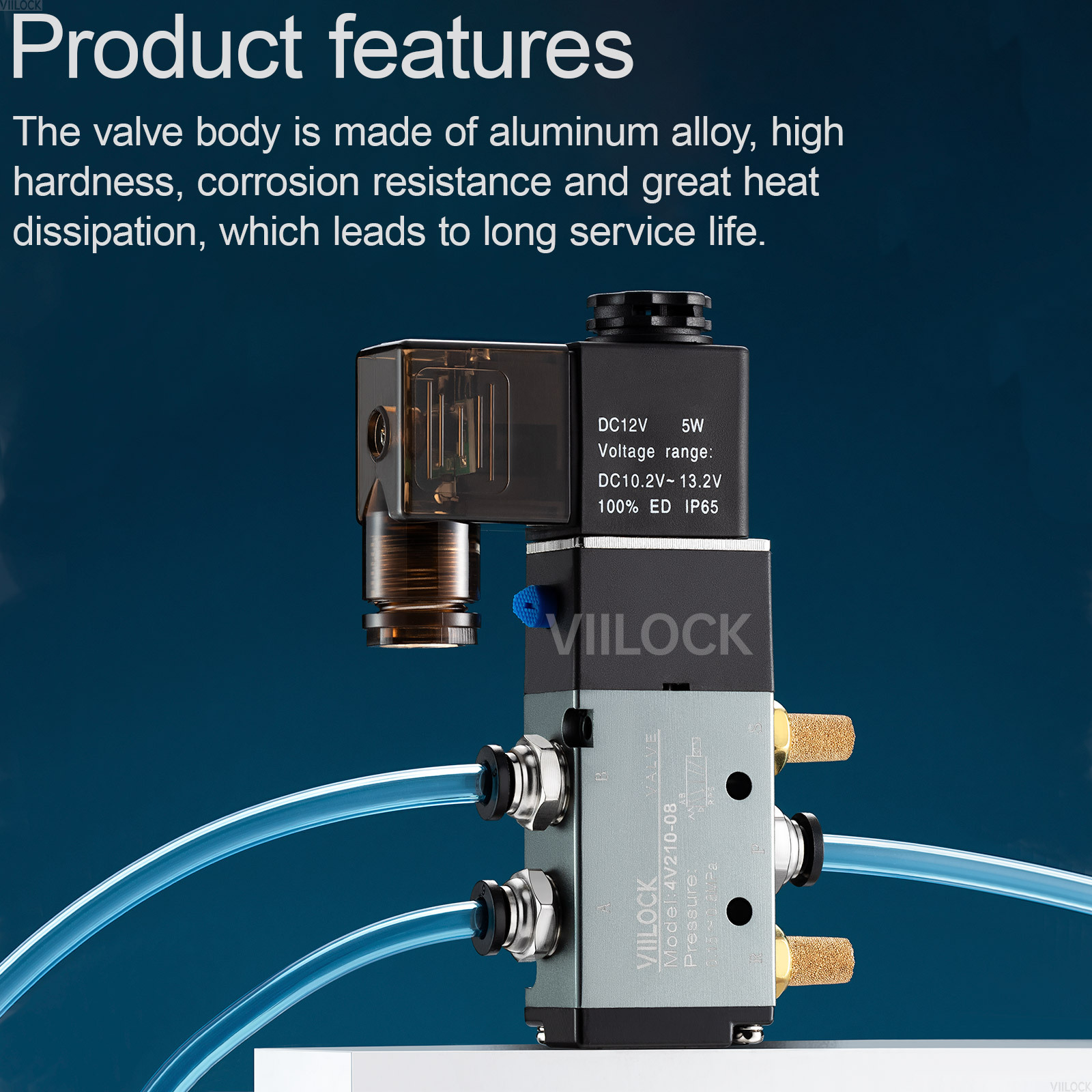

- Aluminum Alloy Valve Body: High-hardness aluminum construction delivers exceptional corrosion resistance, heat dissipation, and durability for long service life.
- Safe DC12V Operation: 12V DC low-voltage actuation (Voltage Range: DC10.2V~13.2V, Power: 5W), perfect for automotive, low-voltage equipment, and safety-critical applications.
- 5/2-Way Single Solenoid Design: Energized to switch, de-energized to reset with spring return, ensuring reliable shutoff and safety in pneumatic systems.
- Distinctive Black Housing Appearance: Black coil housing with brown transparent viewing window, visually distinct from other versions for easy identification.
- Universal Port Sizing: 1/4"NPT threads for P (Supply) and A/B (Output), 1/8"NPT for R/S (Exhaust), compatible with standard pneumatic components.
- IP65 Protection & 100%ED Operation: IP65 dust and water resistance for harsh industrial environments, 100% duty cycle for continuous operation without overheating.

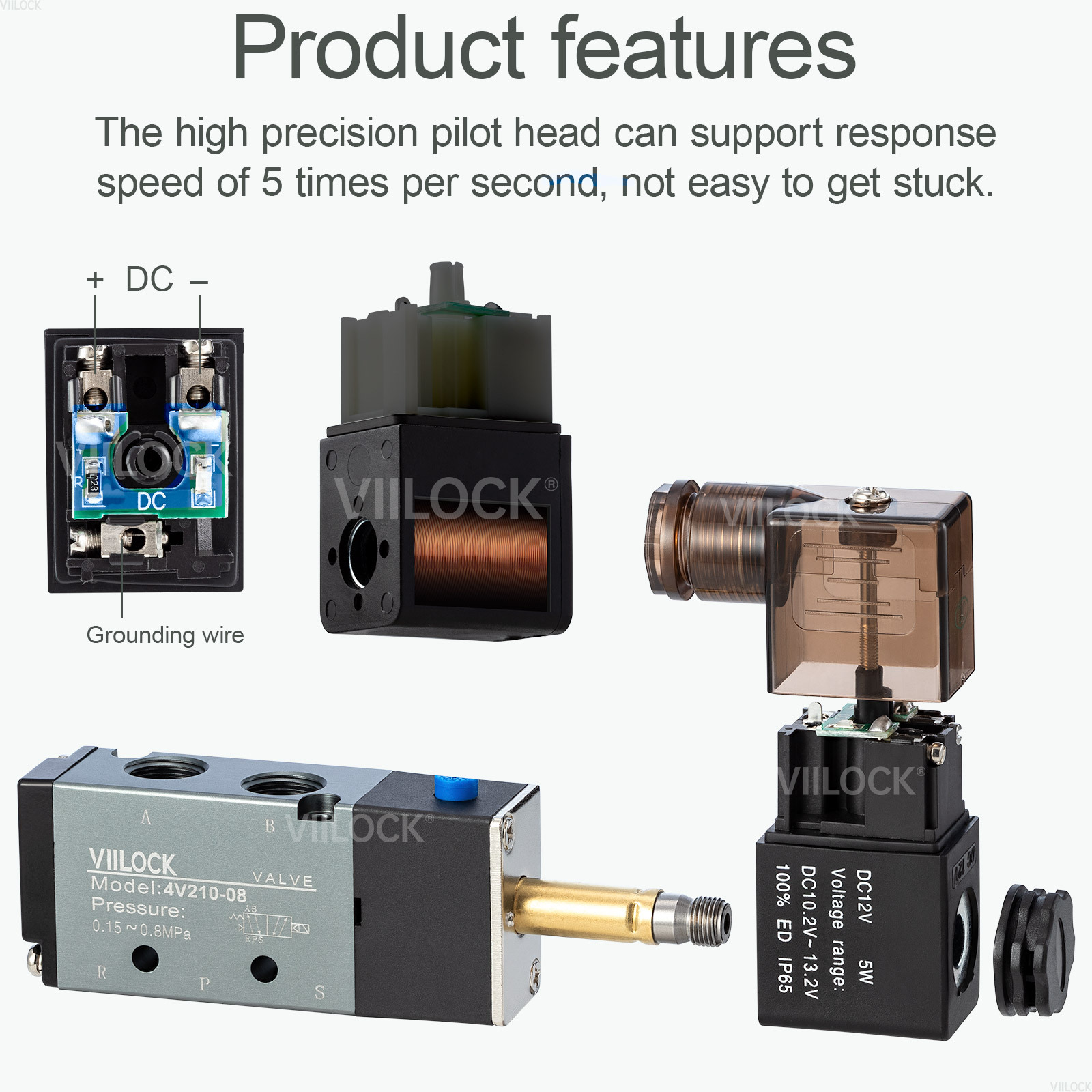

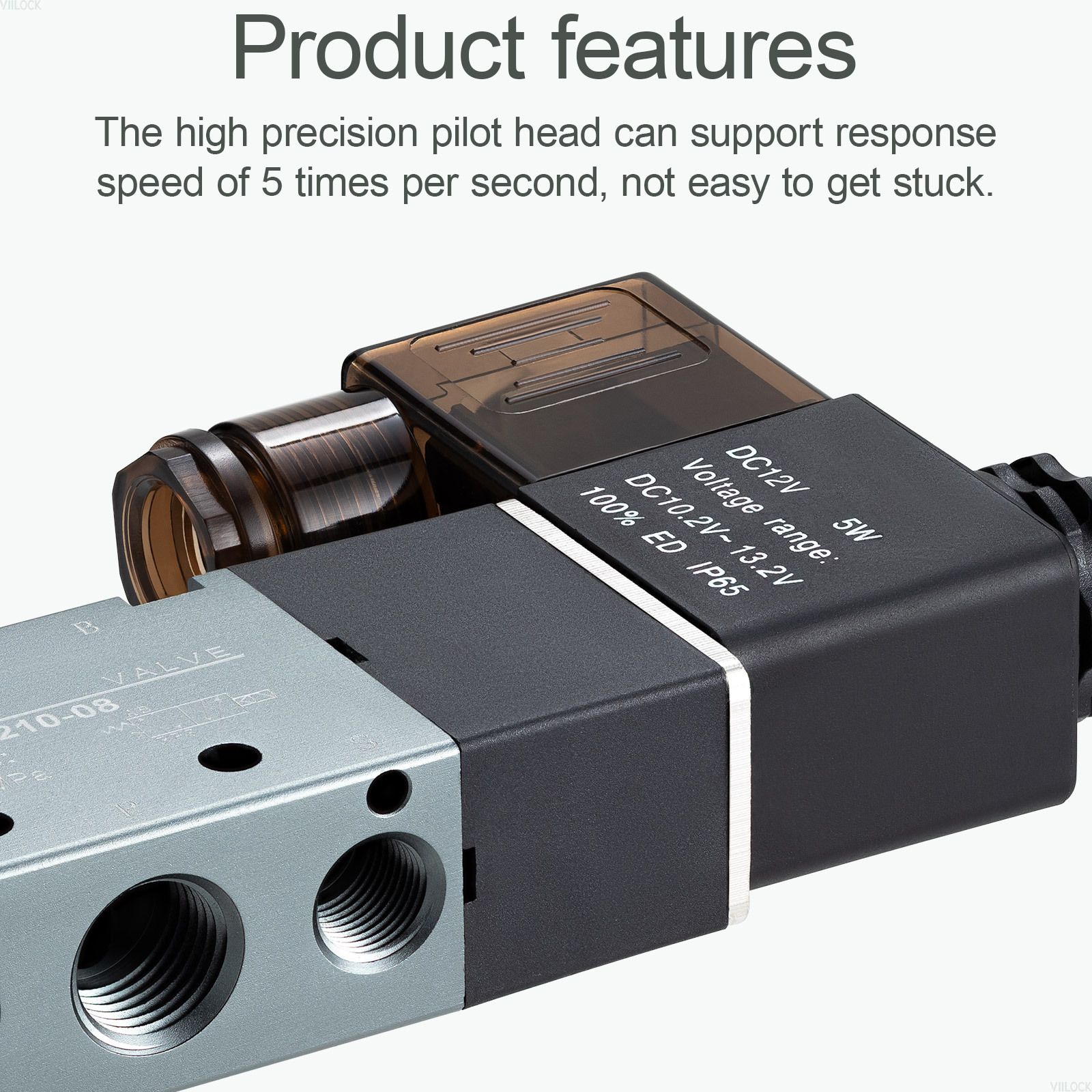

- Fast Response: 5 times per second high-speed switching, anti-jamming design for stable performance.
- Manual Override Ready: Equipped with manual reset button for direct manual control, convenient for emergency operation and debugging.
Technical Parameters
- Model: 4V210-08
- Product Type: 5 Way 2 Position Pneumatic Solenoid Valve (Single Solenoid, Black Housing, Brown Transparent Coil)
- Voltage: DC12V (Voltage Range: DC10.2V~13.2V, Power: 5W)
- Working Pressure Range: 0.15-0.8MPa
- Port Size: Air Inlet (P)=1/4"NPT, Air Outlet(A B)=1/4"NPT, Air Exhaust(R S)=1/8"NPT
- Material: Aluminum Alloy (High Hardness, Corrosion Resistant, Great Heat Dissipation)
- Coil Appearance: Black Housing with Brown Transparent Viewing Window (Distinguished from Other Versions)
- Protection Grade: IP65
- Duty Cycle: 100%ED (Continuous Operation)

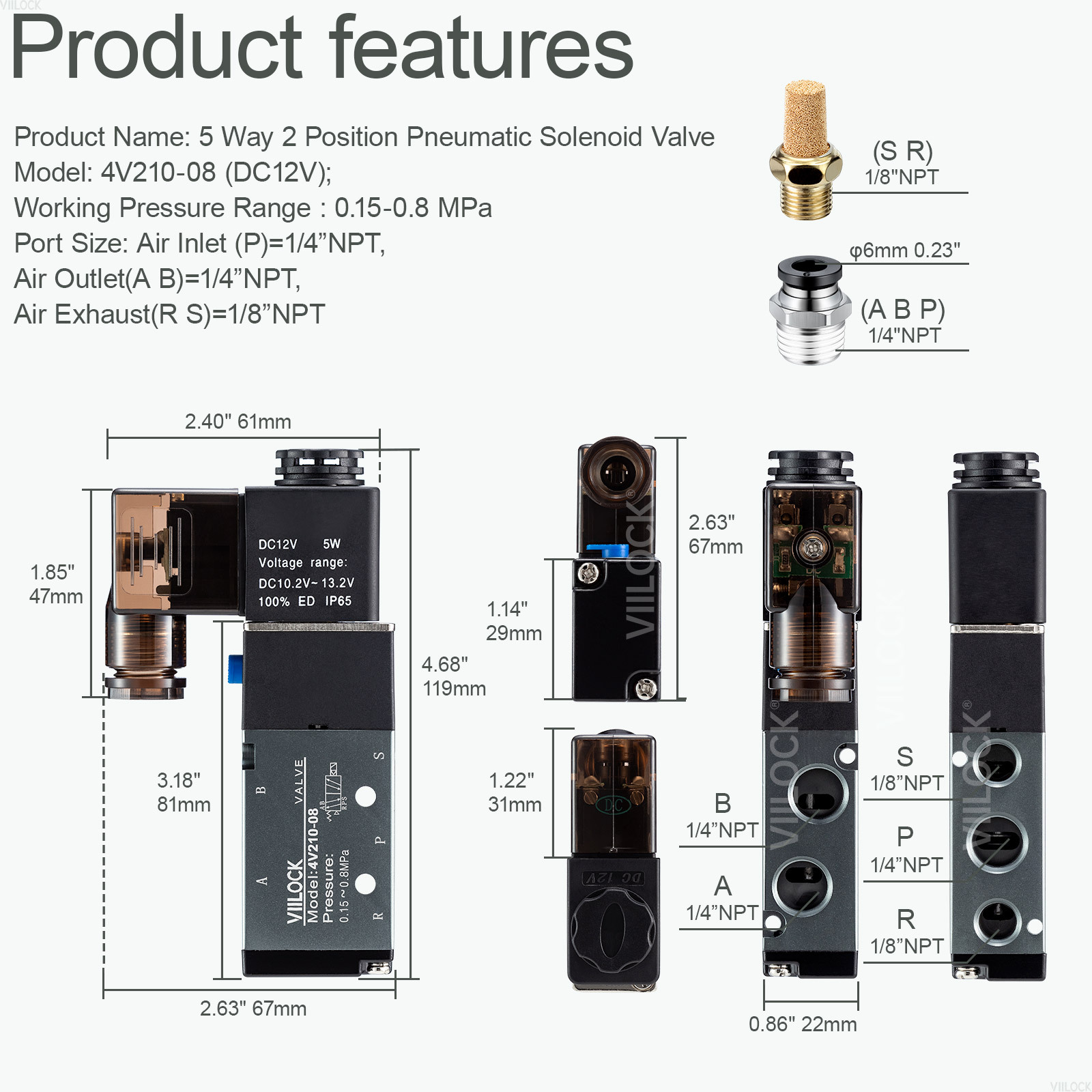

- Dimensions: Total Length 119mm (4.68"), Total Height 67mm (2.63"), Valve Body Width 20mm (0.79")

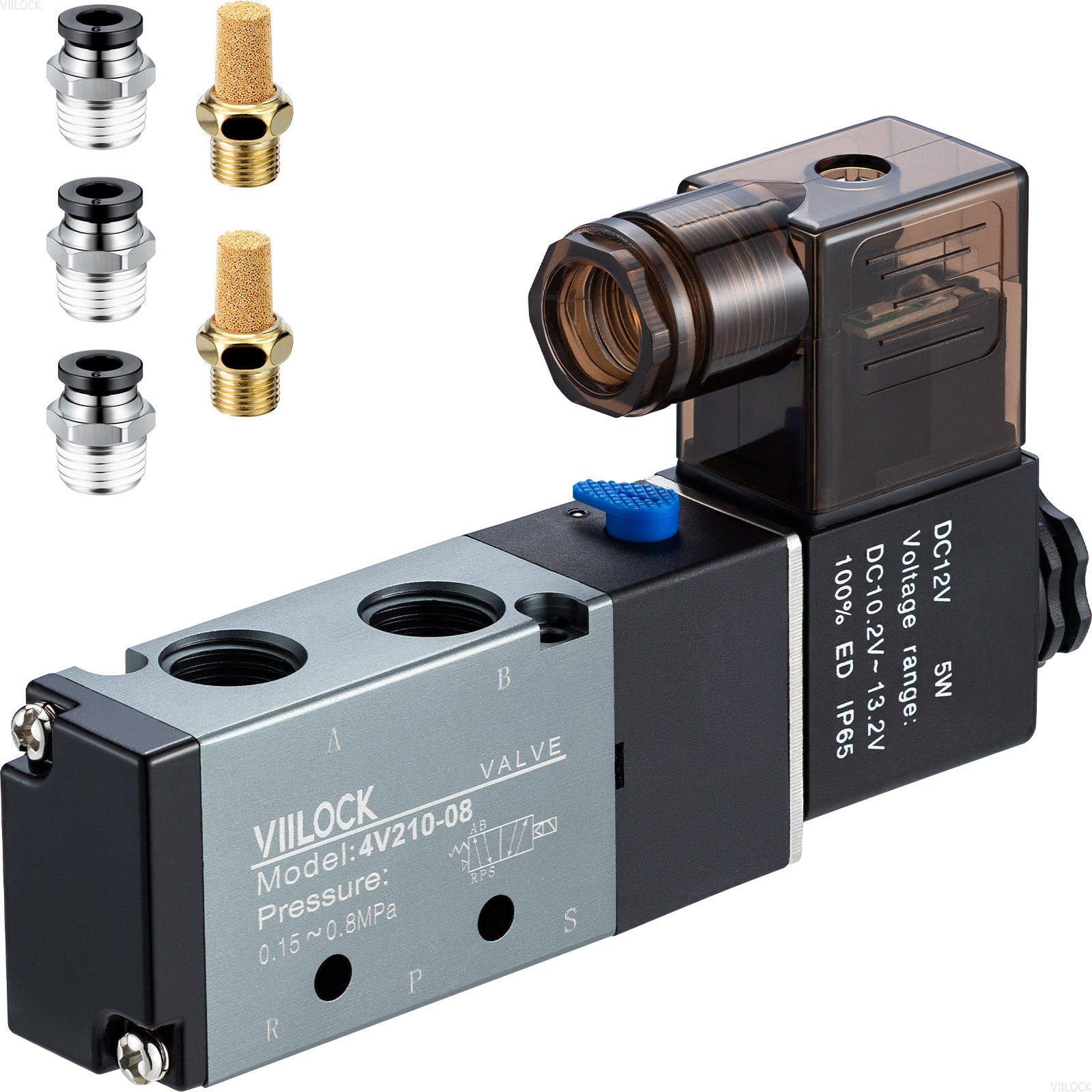

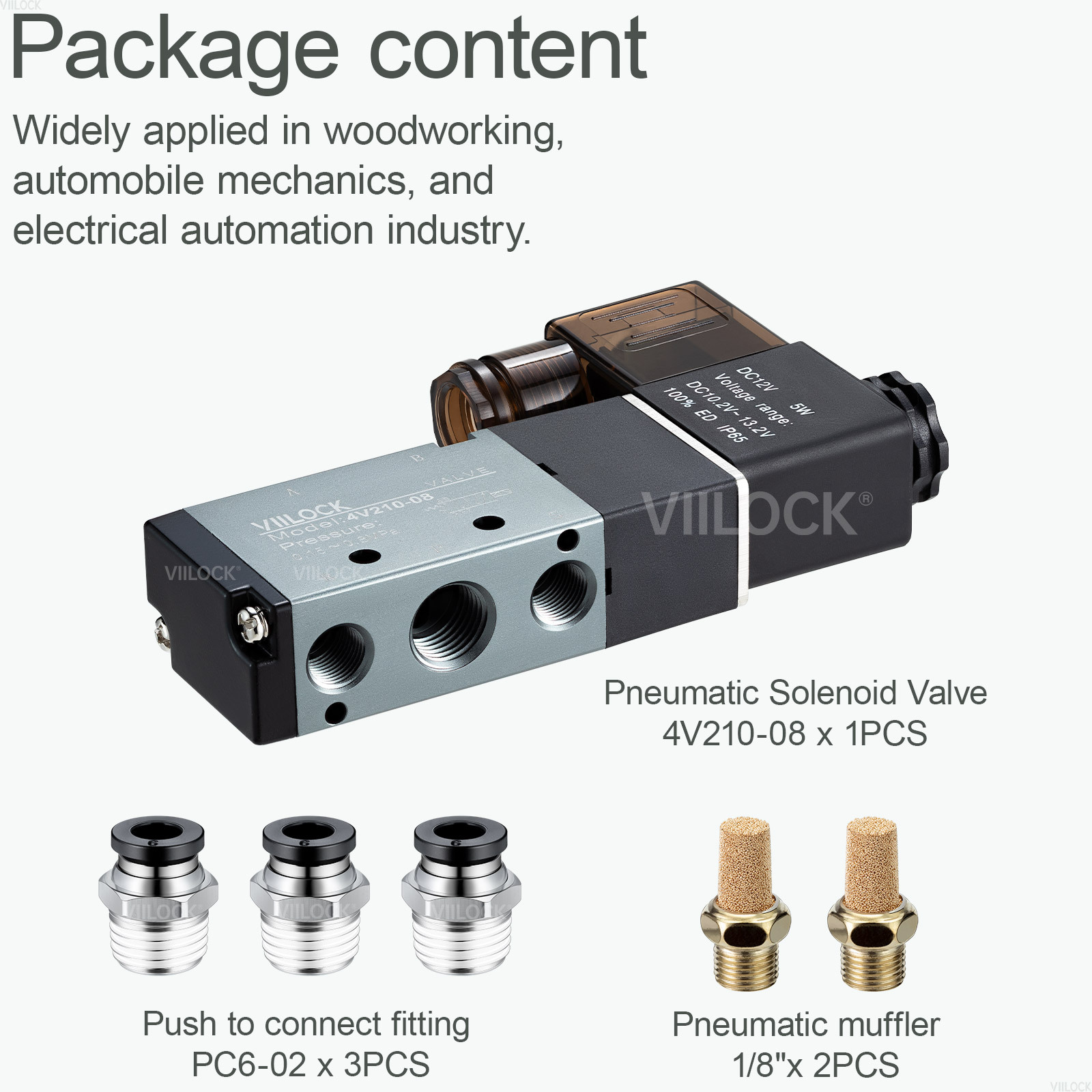

- Package Content: 1 x 4V210-08 DC12V Solenoid Valve, 3 x PC6-02 Push-to-Connect Fittings, 2 x 1/8"NPT Pneumatic Mufflers
Applications
Widely used in woodworking machinery, automotive repair tools, electrical automation production lines, machine tool fixtures, and pneumatic control systems. Ideal for pneumatic systems requiring reliable directional control in low-voltage safety scenarios, with a distinct black housing for visual differentiation.
