Product Description

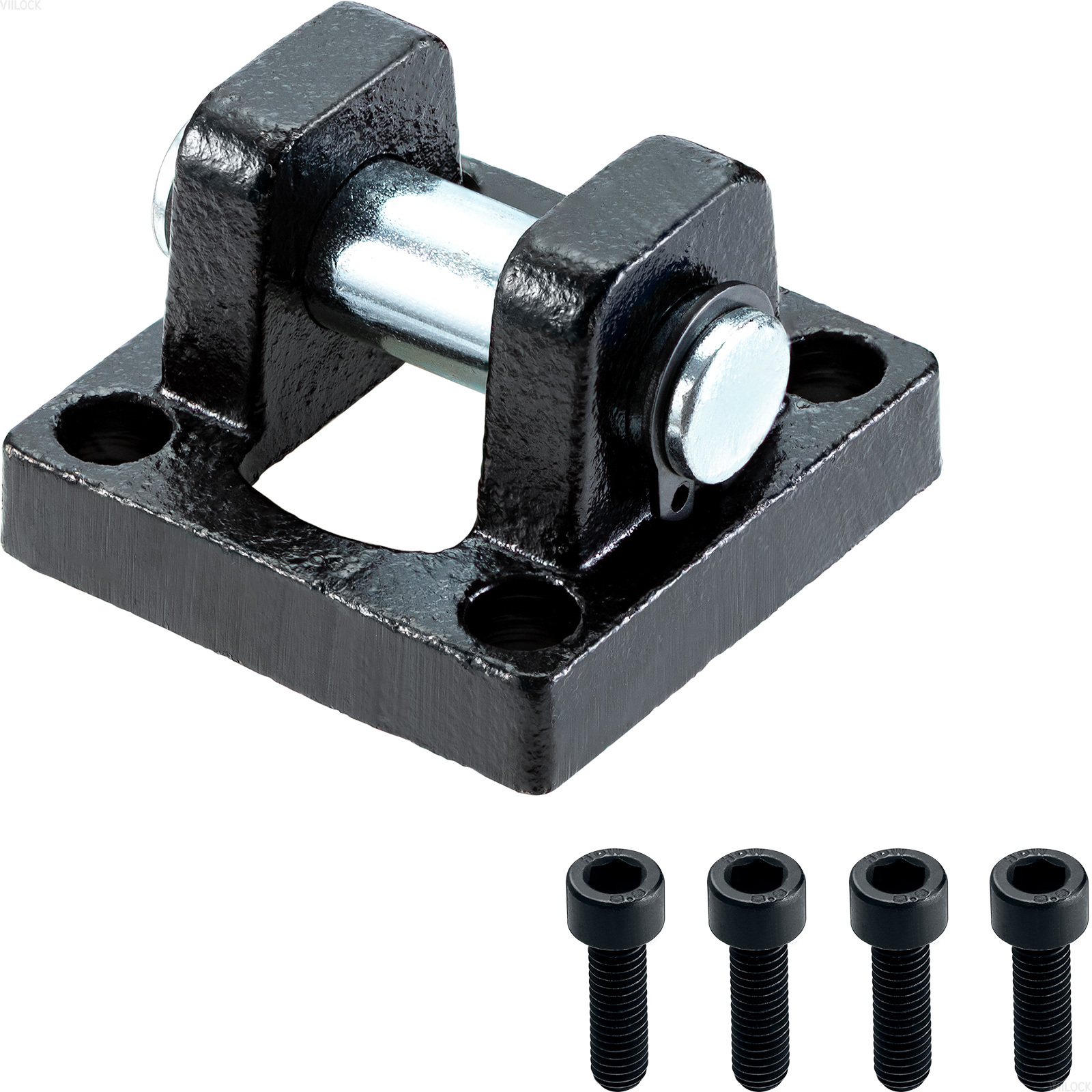

The CB-32 is a heavy-duty cast iron clevis mounting base specifically engineered for 32mm bore standard pneumatic cylinders and gas spring rods. Constructed from high-quality cast iron with a black coated finish and a chrome-plated pivot pin, this bracket delivers exceptional strength, impact resistance, and wear resistance. Its standardized design ensures a perfect fit with standard cylinder models, providing a secure and stable mounting solution for pivoting cylinder applications. The package includes 1 CB-32 bracket and 4 socket head cap screws, making it ready for immediate installation. It is widely used in automated production lines, machine tool fixtures, and pneumatic equipment.
Key Features

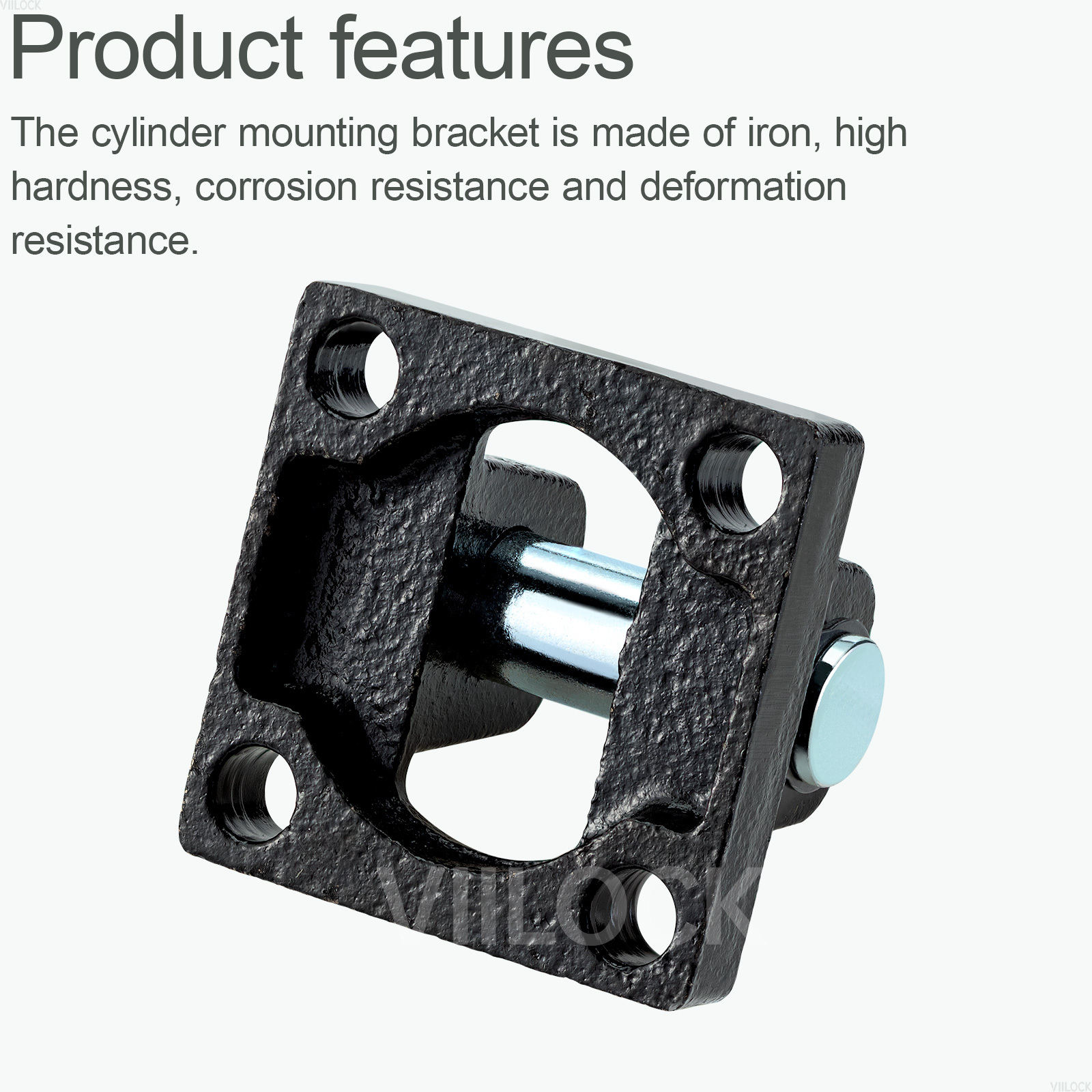

- High Hardness Cast Iron Construction: Heavy-duty cast iron material for superior load-bearing capacity and durability under high pressure and frequent operation.
- Corrosion Resistant Coating: Black coated finish provides excellent rust and wear resistance, suitable for harsh industrial environments.
- Standard Fit for 32mm Bore: Precision engineered to fit standard 32mm bore cylinders, ensuring universal compatibility and easy integration.
- Clevis Pivot Design: Equipped with a chrome-plated pivot pin for smooth pivoting action, ideal for swing cylinder applications.
- Complete Mounting Kit: Includes 4 high-strength bolts for a tight and secure installation, preventing loosening.
Technical Parameters
- Model: CB-32
- Product Type: Standard Air Cylinder Attachment (Clevis Mount)

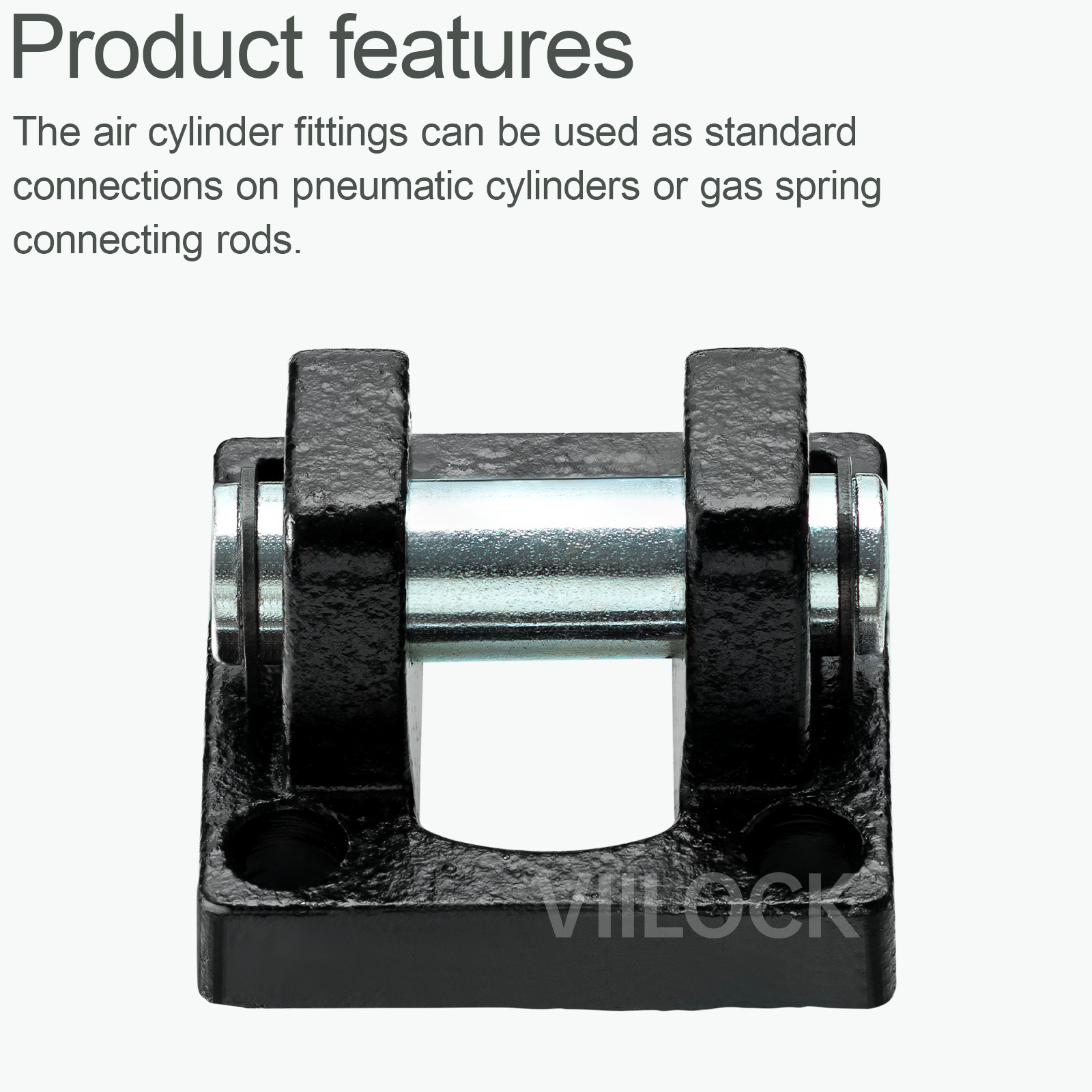

- Application: 32mm Bore Standard Pneumatic Cylinders / Gas Spring Rods
- Material: Cast Iron (High Hardness)
- Surface Treatment: Black Coating (Anti-Rust & Wear Resistant), Chrome-Plated Pivot Pin
- Base Plate Dimensions: 33mm × 33mm (1.29")

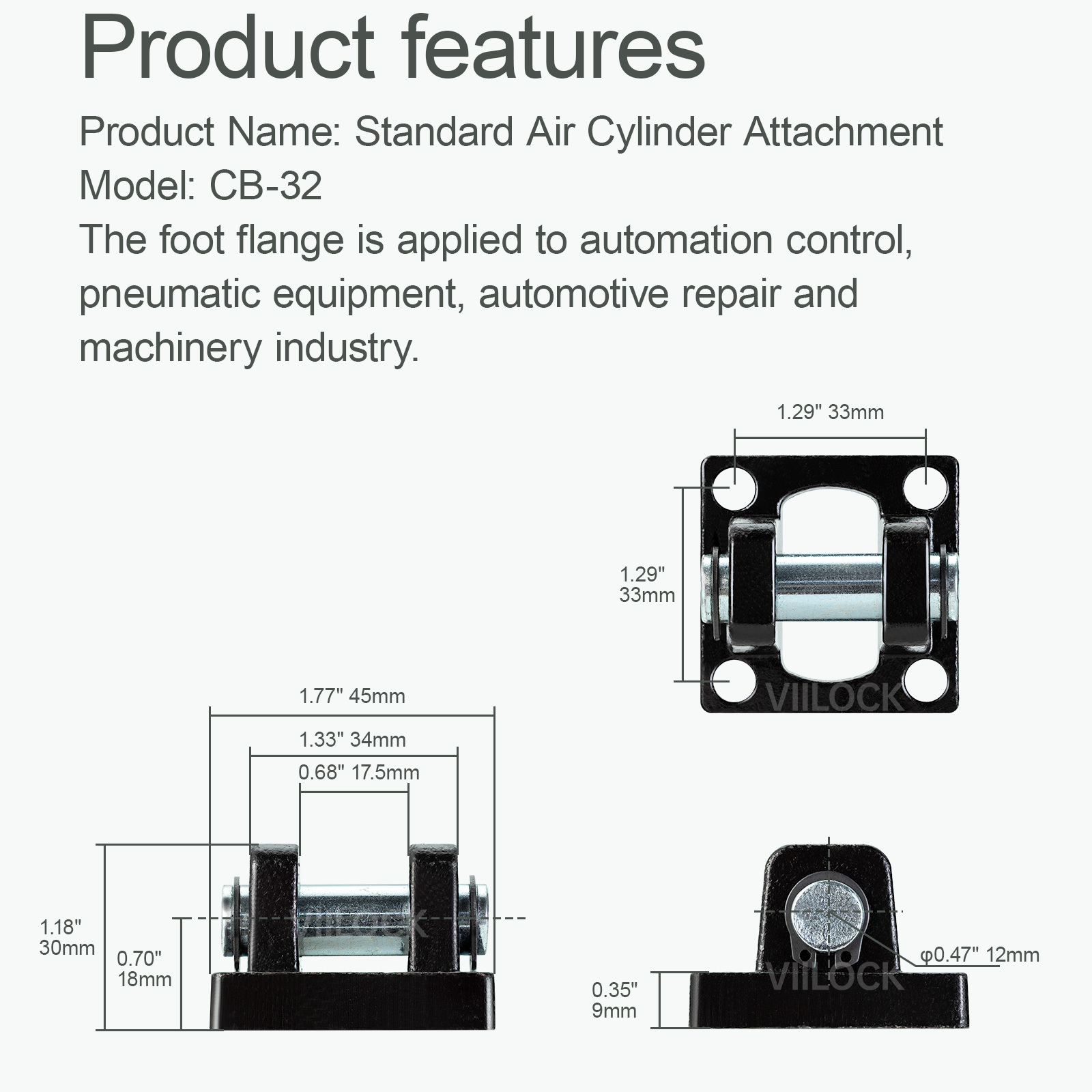

- Key Dimensions: Base Width 45mm (1.77"), Mounting Hole Pitch 34mm (1.33"), Pivot Pin Diameter φ12mm (0.47"), Base Thickness 9mm, Total Height 30mm (1.18")

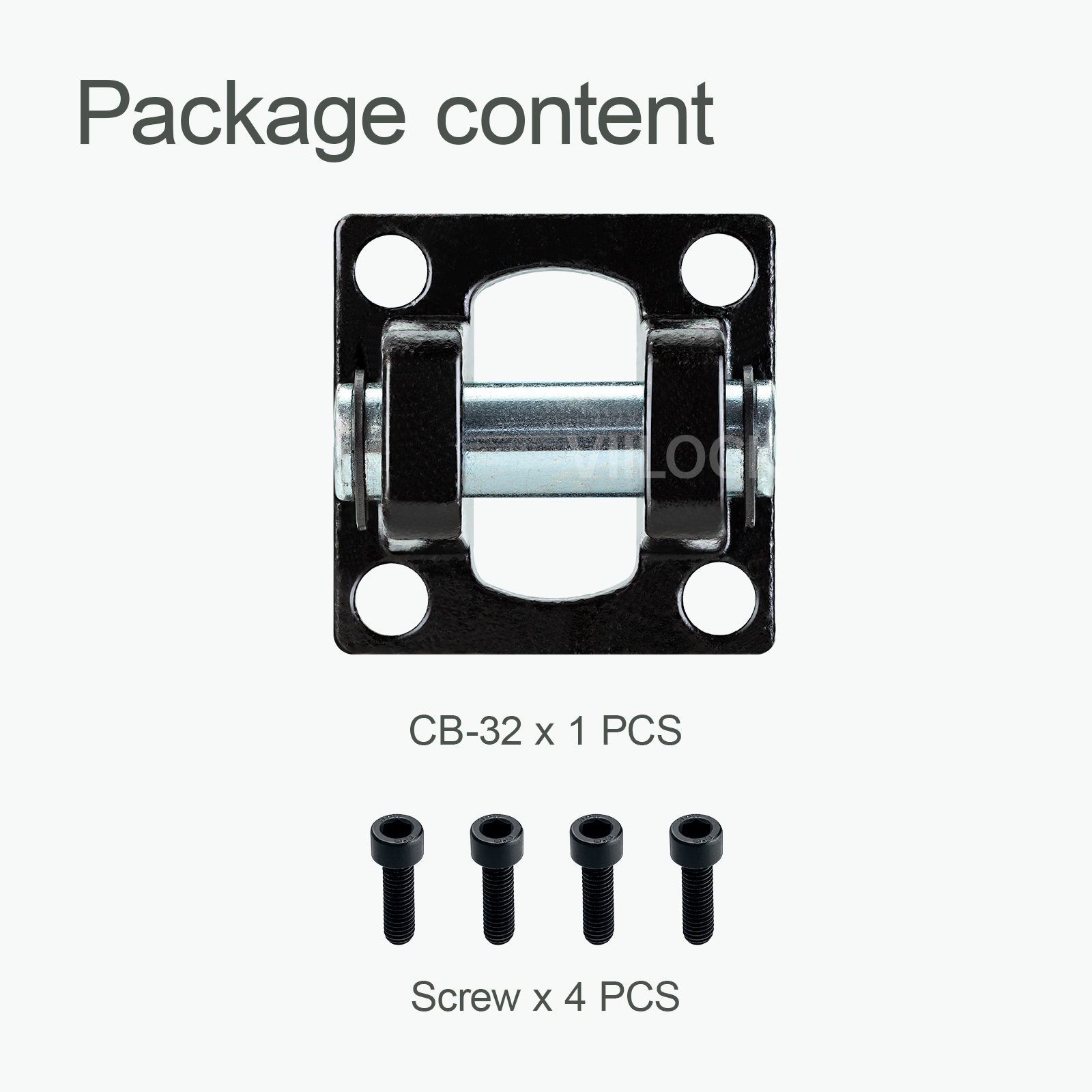

- Package Content: 1 x CB-32 Bracket, 4 x Screws
