Product Description
The FV320 is a heavy-duty 3/2-way foot pedal pneumatic valve engineered for hands-free directional control of pneumatic systems. Constructed from high-strength die-cast aluminum alloy with a high-tensile spring return, it delivers instant airflow activation by foot operation, perfect for freeing hands during workflow. Featuring standard 1/4"NPT ports for supply/actuation and 1/8"NPT exhaust port compatible with muffler, this valve ensures seamless integration with mainstream pneumatic components. With exceptional hardness, corrosion resistance, and great heat dissipation, it offers long service life in industrial environments. It is widely used in automation production lines, textile machinery, automotive mechanics, and industrial automation, ideal for hands-free pneumatic control scenarios.
Key Features

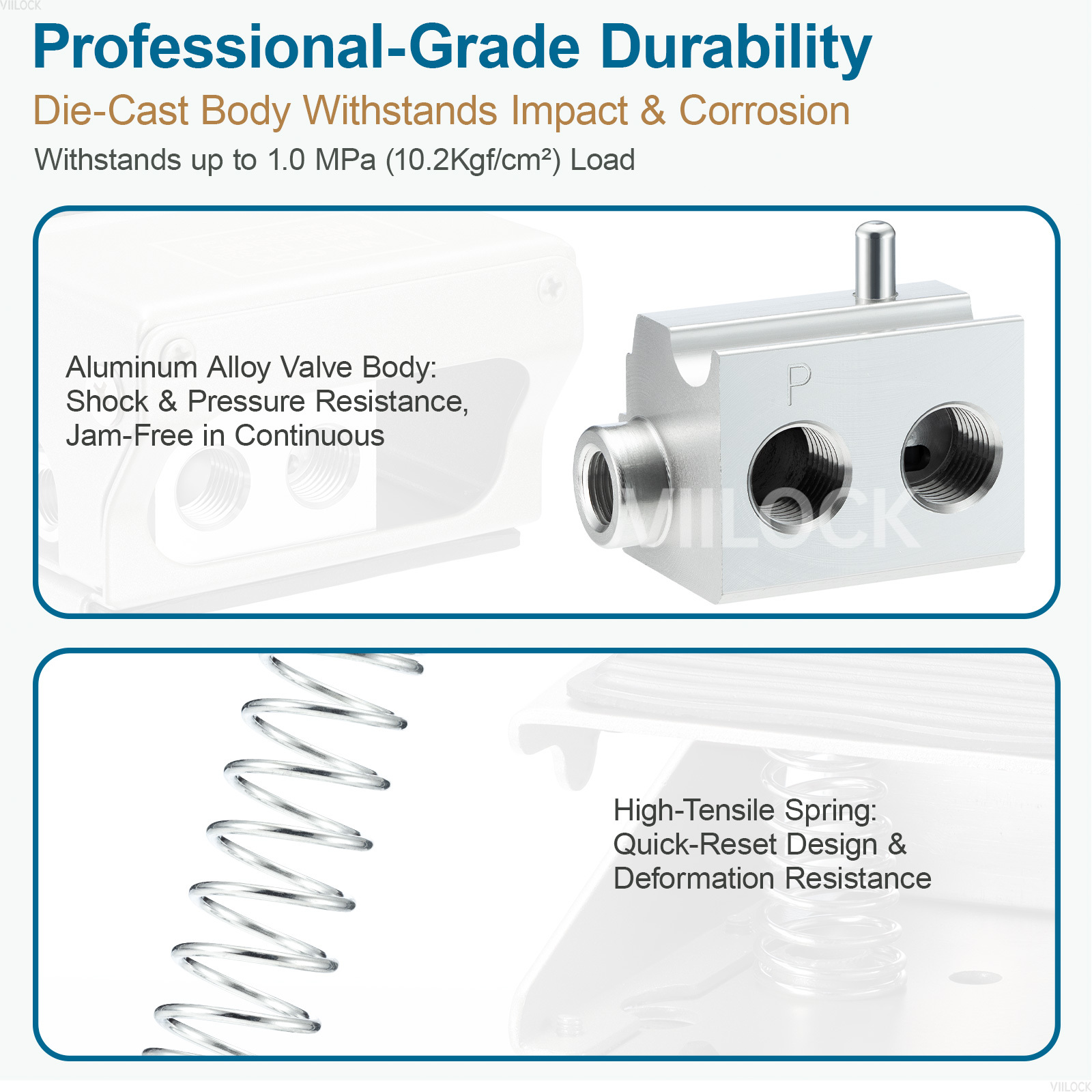

- Die-Cast Aluminum Alloy Valve Body: High-hardness aluminum construction delivers exceptional impact resistance, corrosion resistance, and great heat dissipation for long service life.

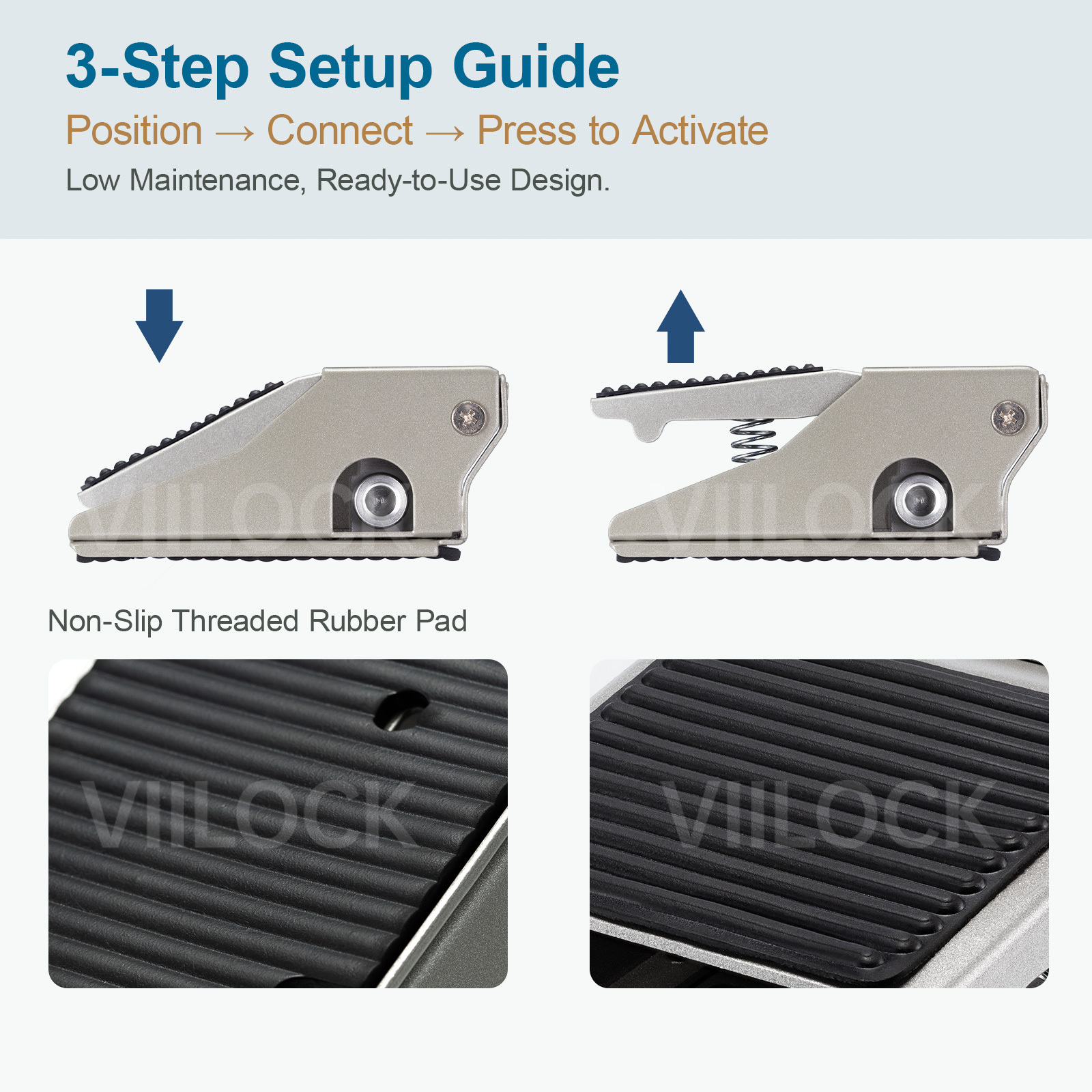

- 3/2-Way Foot Pedal Design: Press to switch, release to reset with spring return, ensuring reliable control of single-acting cylinders.
- High-Tensile Spring: Quick-reset design, deformation resistant, jam-free in continuous operation.
- Non-Slip Pedal Design: Textured pedal surface with non-slip rubber pads at the base, stable operation without slipping.
- Universal Port Sizing: 1/4"NPT threads for P (Supply) and A (Output), 1/8"NPT for R (Exhaust), compatible with standard pneumatic components and mufflers.
- Modular Mounting Flexibility: Standard dimensions for universal mounting in diverse pneumatic setups, ready-to-use design.
- Low Maintenance: Simple structure, zero maintenance, fast installation without leakage.
Technical Parameters
- Model: FV320
- Product Type: 3 Way 2 Position Foot Pedal Pneumatic Valve
- Working Pressure Range: 0~1.0MPa (MAX. 10.2Kgf/cm²/145psi)
- Port Size: Air Inlet (P)=1/4"NPT, Air Outlet(A)=1/4"NPT, Air Exhaust(R)=1/8"NPT
- Material: Aluminum Alloy (High Hardness, Corrosion Resistant, Great Heat Dissipation)
- Reset Method: Spring Automatic Reset

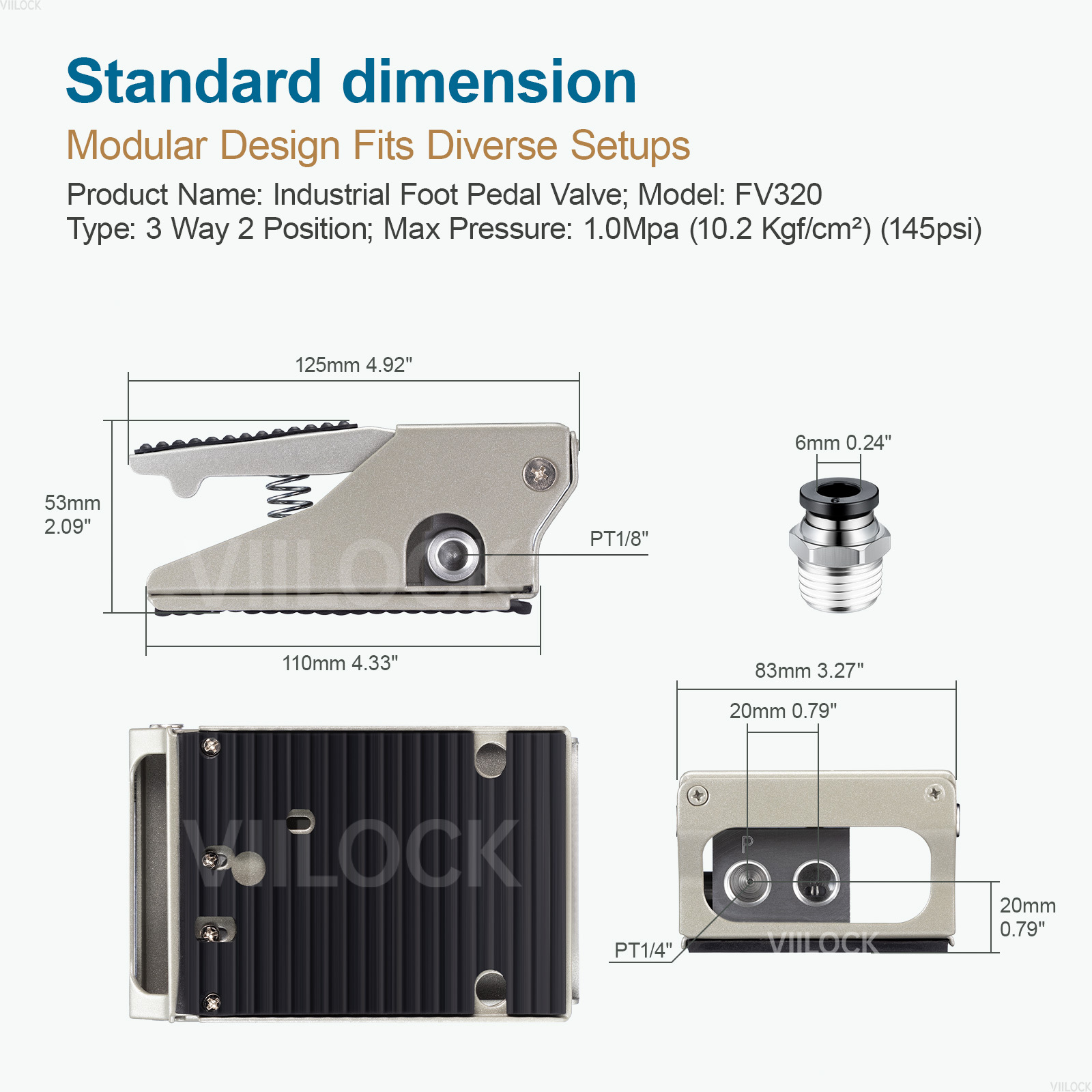

- Dimensions: Total Length 125mm (4.92"), Total Height 67mm (2.63"), Base Width 83mm (3.27")

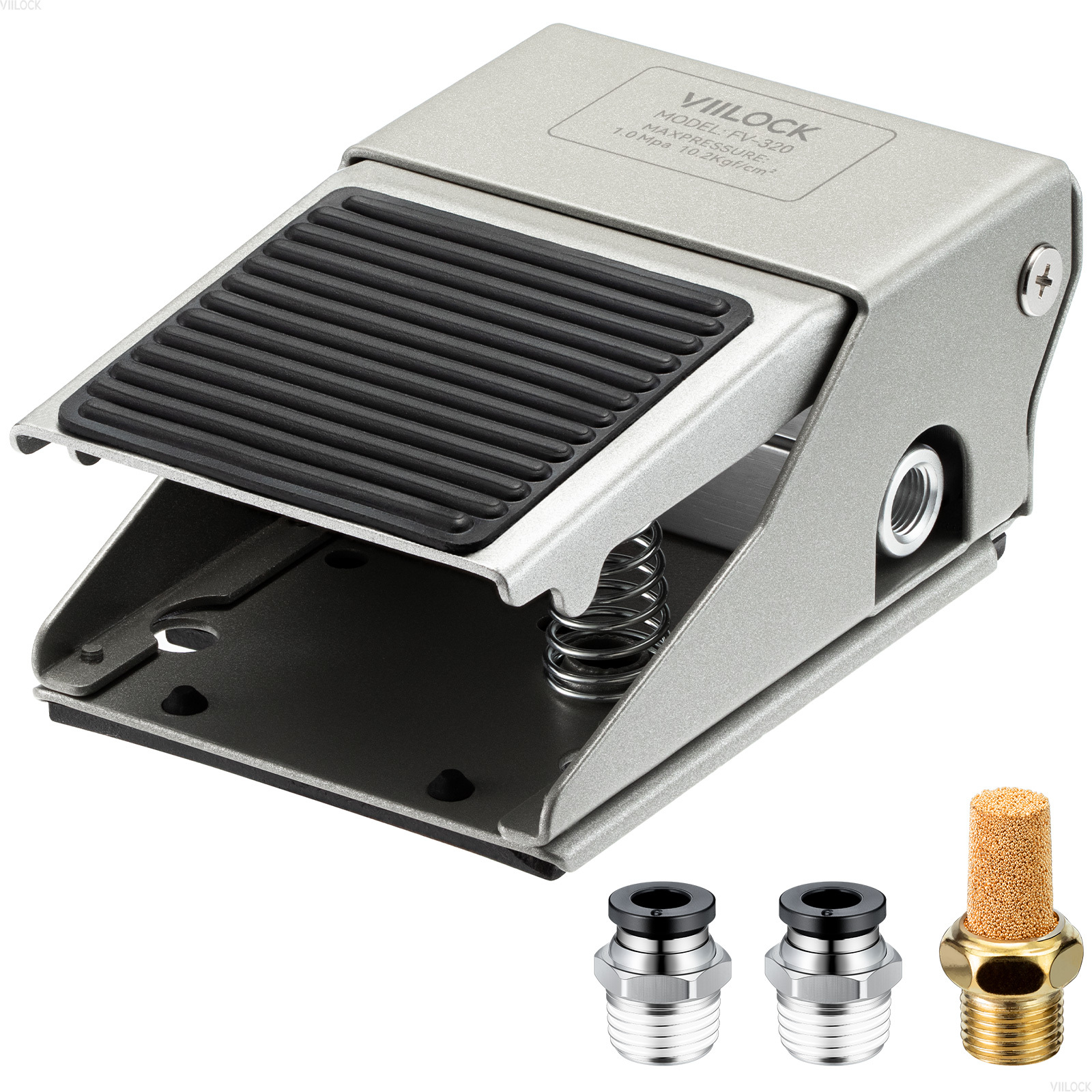

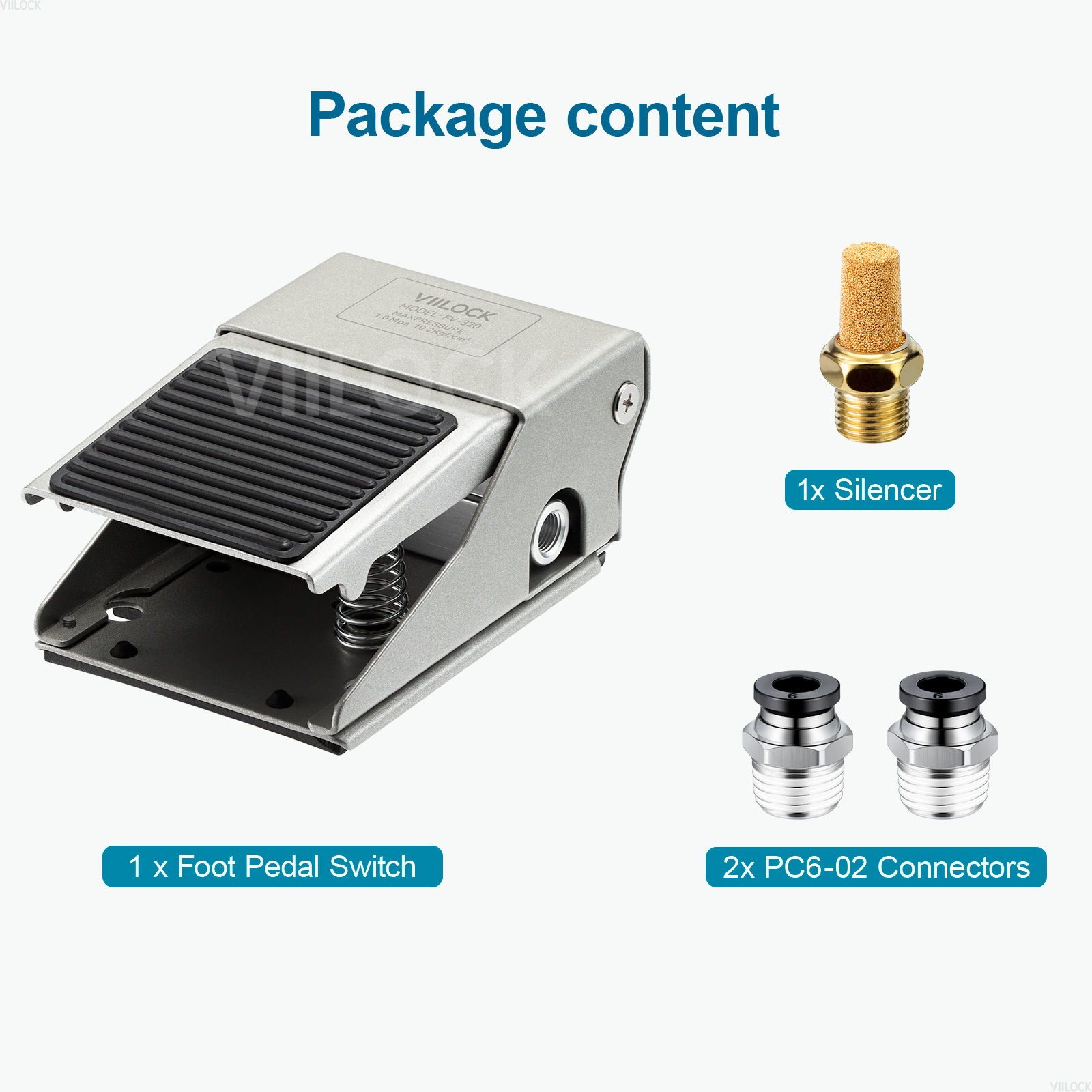

- Package Content: 1 x FV320 Foot Pedal Valve, 2 x PC6-02 Push-to-Connect Fittings, 1 x 1/8"NPT Pneumatic Muffler

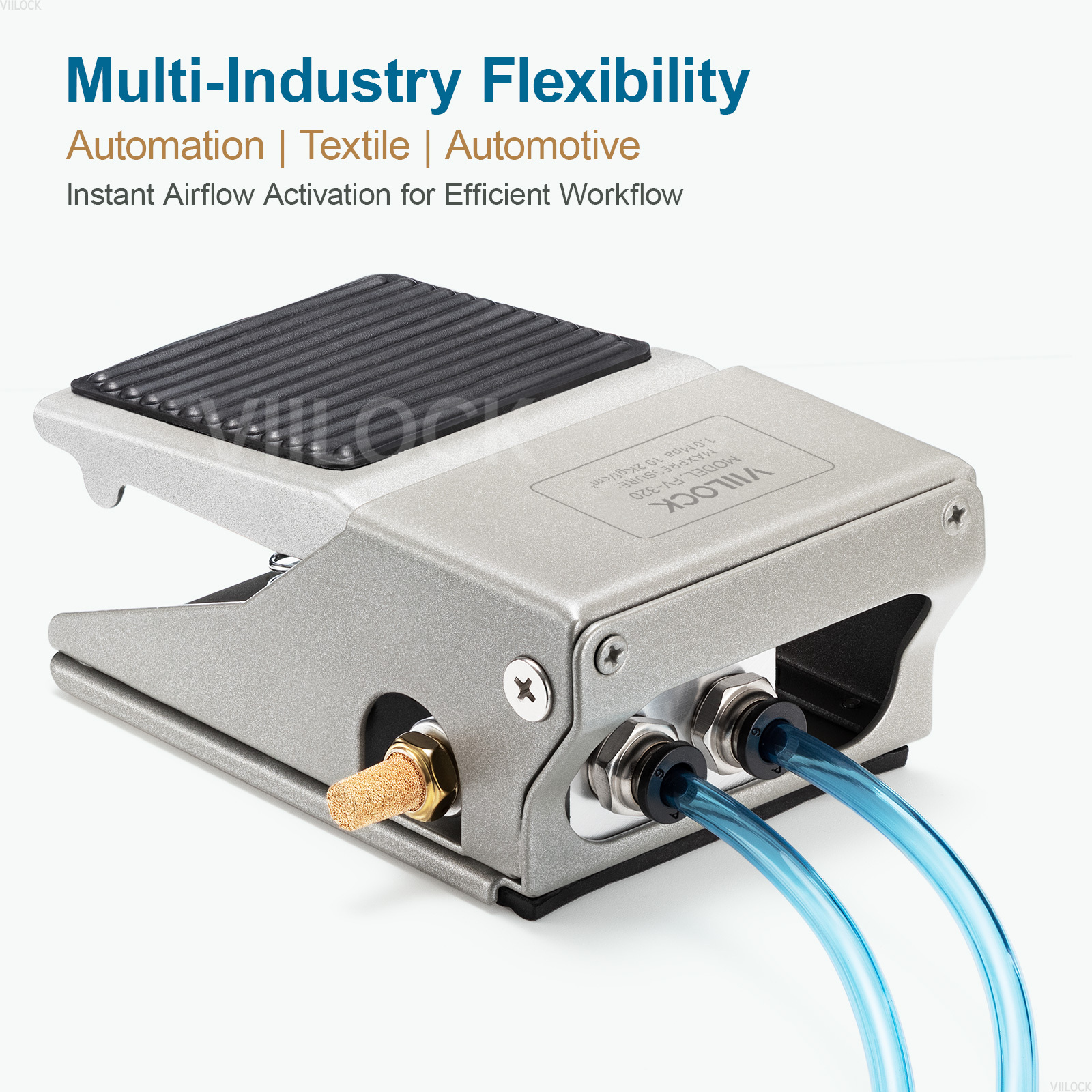

Applications
Widely used in automation production lines, textile machinery, automotive mechanics, and industrial automation equipment. Ideal for pneumatic systems requiring hands-free control and efficient workflow.
