Product Description

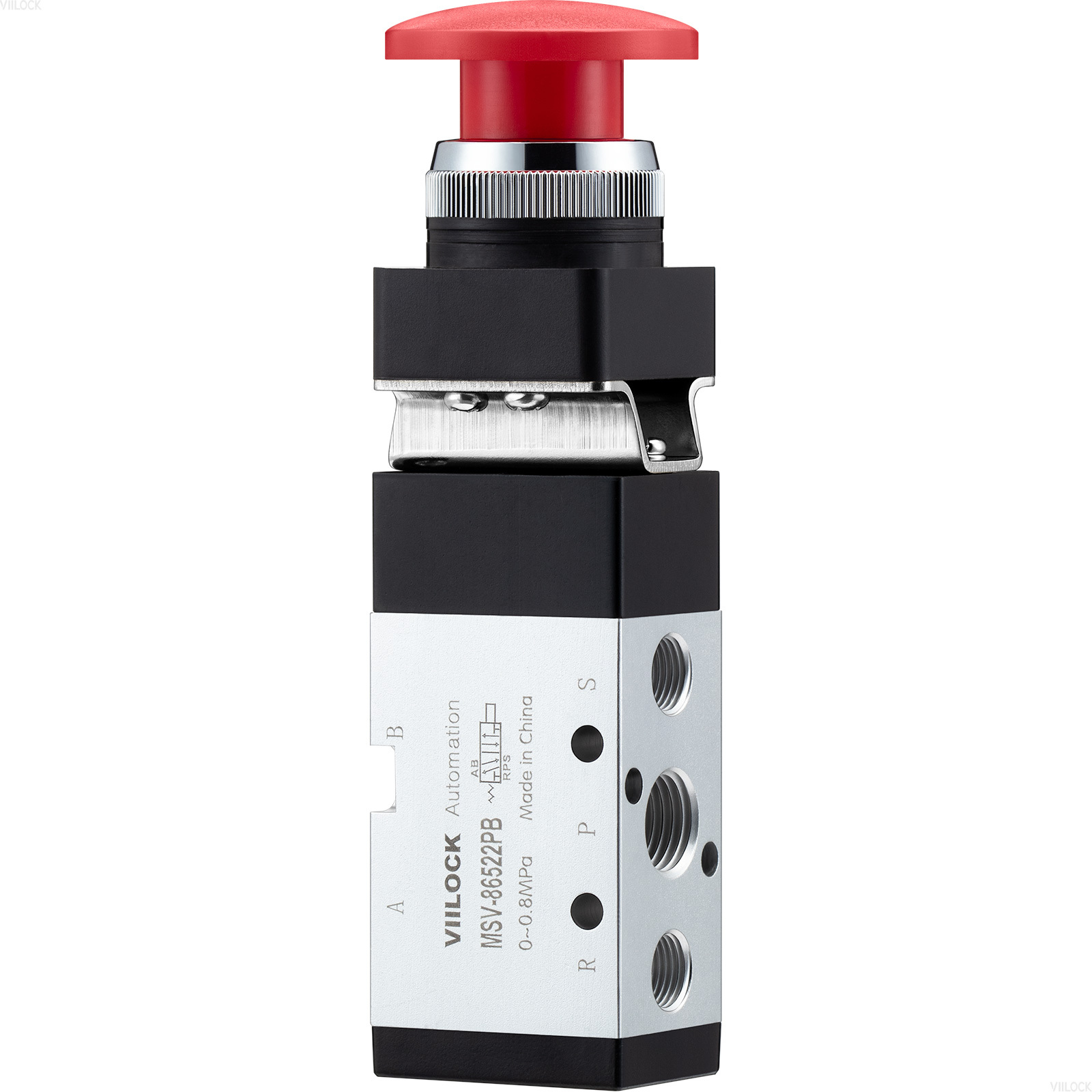

This MSV-86522PB 5-way 2-position pneumatic mechanical valve is designed with a momentary mushroom push button, built from high-strength aluminum alloy with a durable finish, featuring standard PT thread ports for reliable pneumatic circuit control. With a 0~0.8MPa working pressure range and 0~60℃ temperature tolerance, it delivers stable, leak-free operation for compressed air systems. The valve features a direct mechanical actuation design for fast response and consistent performance, with a compact structure for flexible installation in tight spaces. Widely used in industrial automation equipment, manual control stations, pneumatic cylinder operation, and small machinery safety control circuits.
Key Features

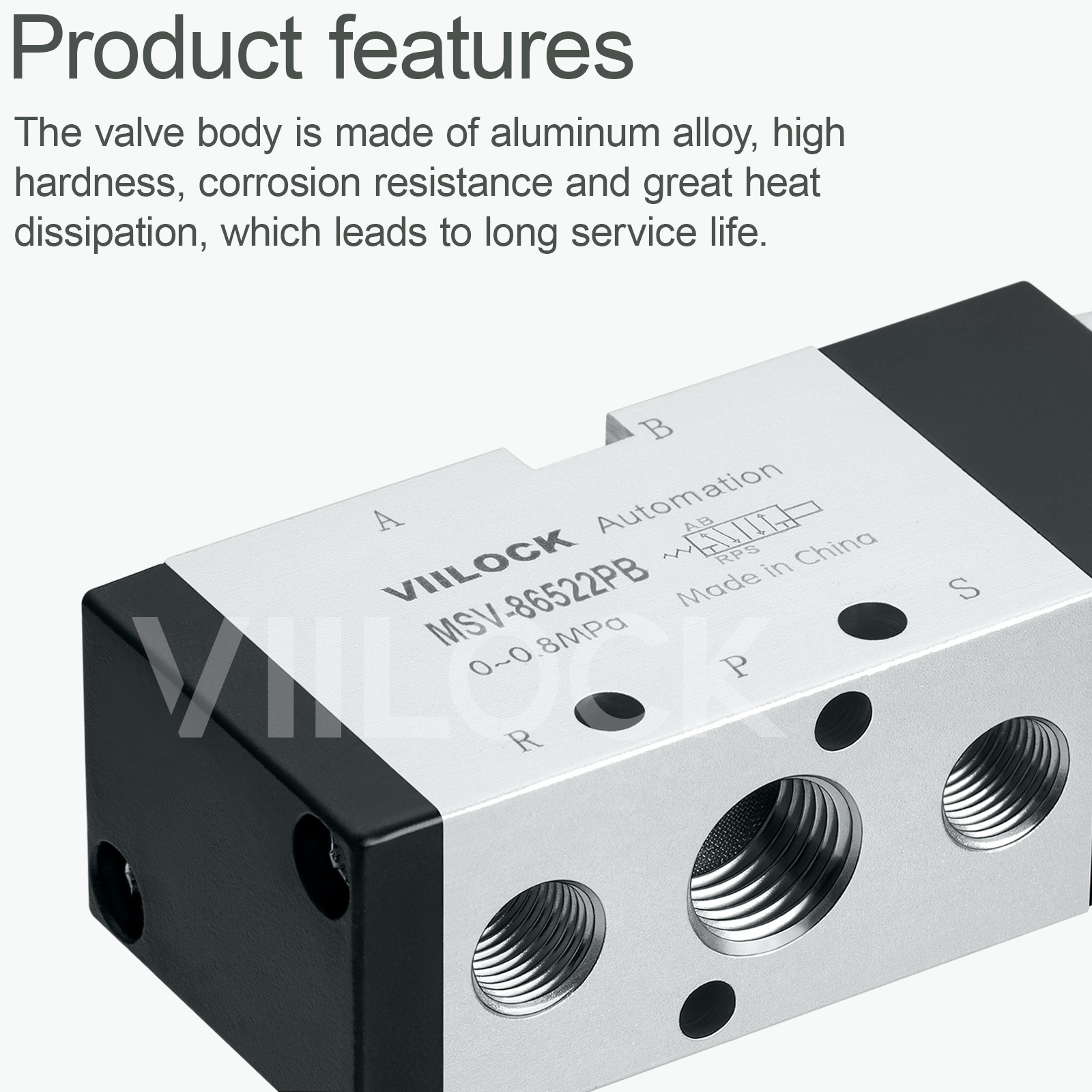

- Aluminum Alloy Valve Body: High hardness, corrosion resistance, excellent heat dissipation for extended service life.
- 5/2-Way Momentary Control: Spring-return mushroom push button for intuitive, quick manual operation.
- Standard Threaded Ports: 1/4" PT inlet/outlet and 1/8" PT exhaust ports for fast, leak-free installation.

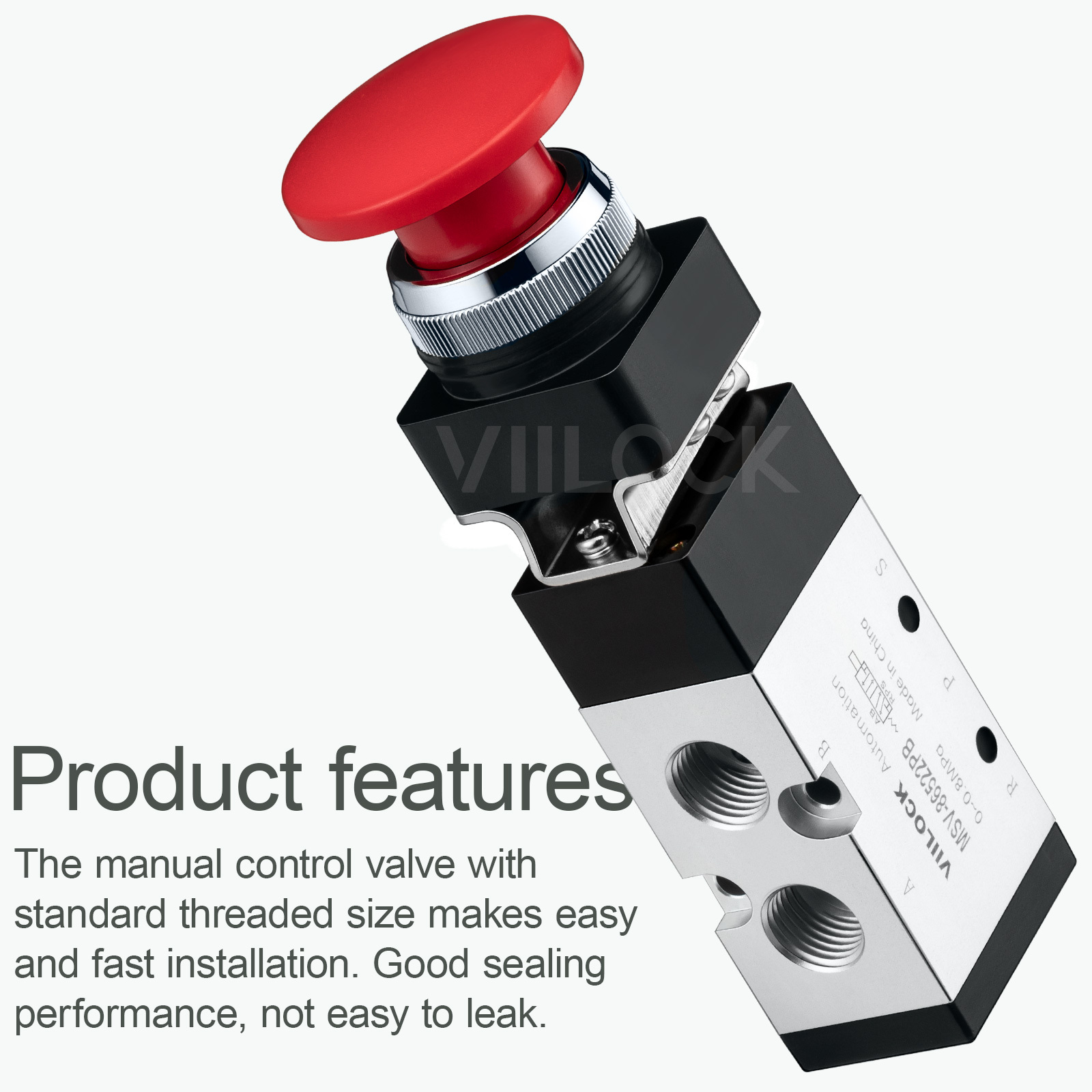

- Excellent Sealing Performance: Precision-machined components prevent air leakage, ensuring stable system operation.
- Compact & Durable Structure: Rugged construction withstands frequent use in industrial environments.
- Versatile Compatibility: Works with clean compressed air, suitable for most standard pneumatic systems.
Technical Parameters
- Model: MSV-86522PB
- Type: 5 Way 2 Position Pneumatic Mechanical Valve (Momentary)
- Actuator Type: Mushroom Push Button (Spring Return)
- Working Medium: Compressed Air (Filtered, Dry Air Recommended)
- Working Pressure Range: 0~0.8MPa
- Working Temperature: 0~60℃
- Port Size: Air Inlet (P): 1/4" PT; Air Outlet (A/B): 1/4" PT; Air Exhaust (R/S): 1/8" PT
- Body Material: High-strength Aluminum Alloy
- Installation: Surface or panel mount, flexible orientation (avoid excessive vibration)

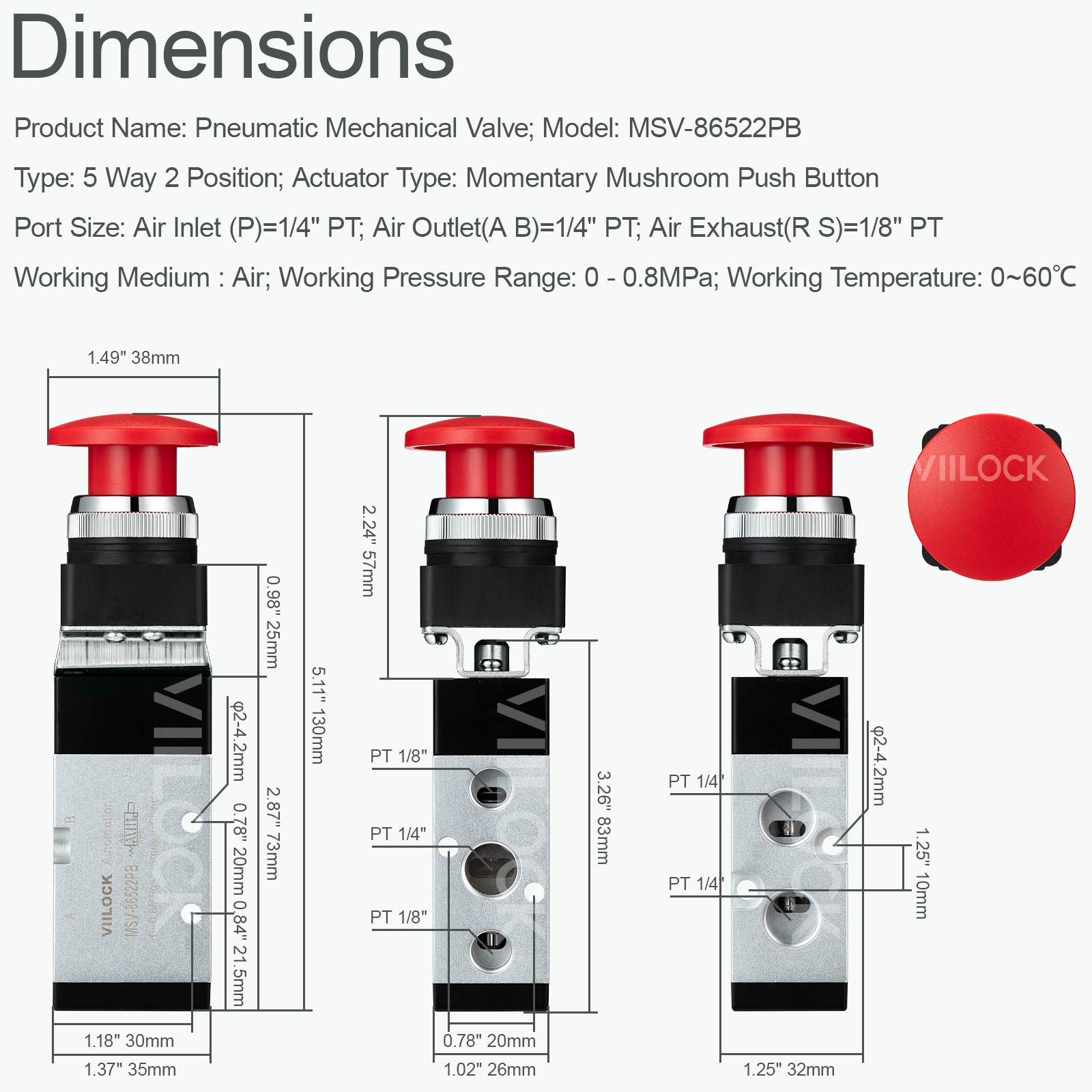

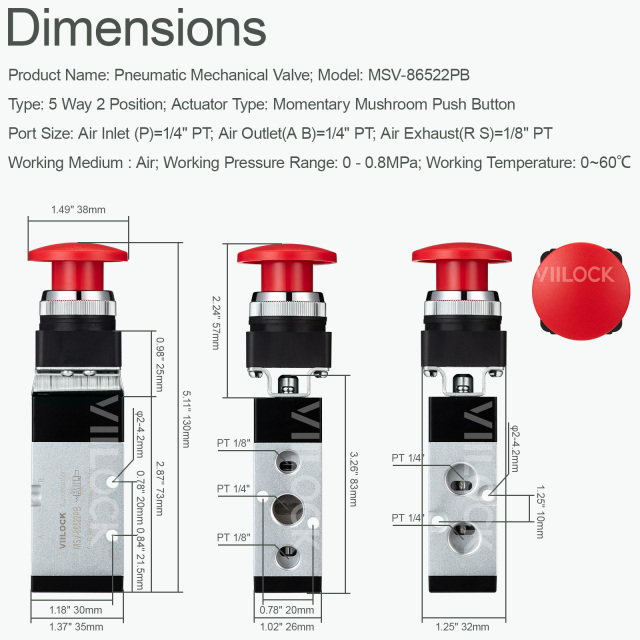

- Dimensions: Total Height 57mm (2.24"), Body Width 30mm (1.18")
Applications
Widely used in industrial automation equipment, manual pneumatic control stations, pneumatic cylinder operation, small machinery safety control, equipment testing, and production line auxiliary control. Ideal for scenarios requiring reliable, direct manual control of pneumatic actuators.
